Lifting Equipment

RMN & ESTIL

Repair Management Nederland is already for many years dealer for Estil. This company is well known for a range of high quality tools for lifting. A full range of hoists, Green-Pin shackles, portable hand winches, hydraulic jacks, steel lifting jacks, lifting clamps, barrel lifting clamps, slings etc. is available.

All this materials are supplied with an EU conformity declaration or if required with a separate testing certificate for lifting equipment.

Chain Hoist

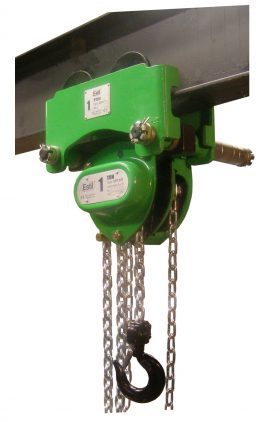

The EST series Chain Hoists  is a extremely solid and compact chain hoist. A special Hoist Trolley EDLV is developed for this series of chain hoists to achieve a very short height. The hoists are available with a lifting capacity from 250 kilo up to 20.000 kilo. Beside this series we offer also the Estil types UB and the ATEX EXEST series chain hoists. The ATEX hoists are suitable for application purposes in potentially explosive environments. They are certified for Zone 1 & 2 and  21 & 22.





Electric Hoists

The UH and ULH series of Estil Electric chain hoists are available in 230Vac and 400V power supply. The most common hoists in this range are available with a lifting capacity of 500 kg up to 2.000 kg, (bigger capacities are available on request). This electric chain hoists can be combined with electric trolleys to become a perfect combination for your workshop or on board of your vessel. Lifting heights, lengths of power cable, control cable lengths all can be adapted to your requirements. The UT series of Estil electric driven trolleys are specifically to combine with this electric chain hoists. A special version is the CWS Scaffold Hoist. This is a 230V powered lightweight and compact steel wire hoist especially developed safe lifting jobs on scaffolds.



Pendant Control Units

Pendant Control Units TM series for Electric Chain Hoists, Trolleys and Cranes. Comes with emergency push button with lock and front mounting. Optional on request with key or bottom mounting. Pendant Control Units U (UMEGA) series for Electric Chain Hoists and Trolleys. Comes with emergency push button with lock and front mounting.



Link Chain Hand Lever Hoists

The Series ETT Hand-Lever Hoists can be used in all directions and due to the extremely compact design and low weight makes this hoist very useful for maintenance and service jobs. The hoists are available with a lifting capacity of 250 kilo up to 6.000 kilo. Beside this series we also offer the Estil types UL and EXETT ATEX hand-lever hoists. The ATEX hoists are suitable for application purposes in potentially explosive environments. They are certified for Zone 1 & 2 and  21 & 22.



Hoist Trolleys & Beam Clamps for Hoists

Estil offers a wide variety in Hoist Trolleys which can be used in combination with manual and electric chain hoists. The series (plain trolley) EDLV and EHLV (geared trolley) are especially developed to use in combination with the series EST chain hoists. Beside this type we offer also the Estil type EDL and EHL and the Estil types EDS and ESH trolleys. The plain trolleys EDL are available with a lifting capacity of 250 kilo up to 10.000 kilo and the geared trolleys EHL are available with a lifting capacity  of 1.000 kilo up to 20.000 kilo.  We also offer the Estil types EXEDL and EXEHL ATEX hoist trolleys. The ATEX Trolleys are suitable for application purposes in potentially explosive environments. They are certified for Zone 1 & 2 and  21 & 22.



Estil Beam Clamps for a fast and safe suspension point for lifting equipment, wherever a steel beam is present. The series EBK is available with a lifting capacity of 1.000 kilo up to 10.000 kilo and the series EBO provided with a hinged lifting eye and a lifting capacity of 1.000 kilo up to 5.000 kilo.

ATEX Lifting Hoists and Trolleys

ATEX hoists and Hoist trolleys hoists. The ATEX hoists and Trolleys are suitable for application purposes in potentially explosive environments. They are certified for Zone 1 & 2 and  21 & 22.

Lifting Clamps & Barrel Clamps

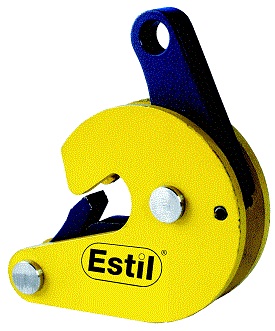

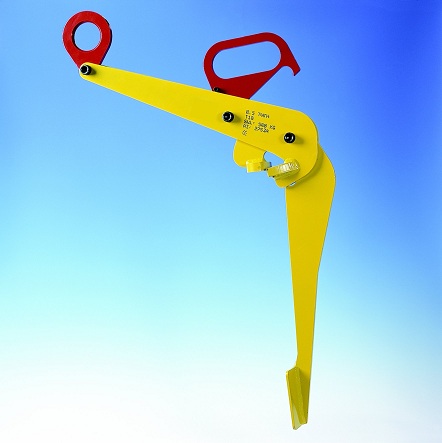

A wide range of lifting clamps is available for all kind of materials. A special HP Bulb clamp for a temporary lifting point, the EP and EPE series vertical lifting clamps for steel plate lifting and transport. The EPU and EPUE is similar to the EP and EPU but offers as extra a lifting eye that makes it possible to move the plate in two directions. The FBK and TOBK series are for steel structures and beams. The TTL series is a special clamp for pipes and other round materials. The TSHP and TSHPU are lifting clamps for HP profiles and constructions.  Steel Barrel clamps are available in multiple versions such as the TVK, TVKH, EVK, VKH and VKV series. The TSCC is a lifting screw clamp especially developed for vertical lifting and transpor tof steel construction elements. Beside that we can offer a complete range of SOFT TOUCH Lifting Clamps for materials that can damage easy such as aluminium, stainless steel or composite plates.



Hydraulic Jacks & Hydraulic Lifting Cylinders

For hydraulic lifting Estil can offer a full range with hydraulic jacks, hydraulic cylinders, hydraulic handpumps and hydraulic electric pums. The hydraulic lifting cylinders are available from 10 ton up to 200 ton. For service engineers there is also a hydraulic Jack EHV series available in capacities of 2 Ton up to 50 Ton. These Jacks can be used in horizontal and vertical directions as well.

Lifting Polyester Flat Single Slings

The Estil Flat Belt type Slings PH are available from 1 Ton up to 10 Ton in many different lengths. All according to NEN-EN  1492-1 with a safety factor of 7:1. Protective covers for protection against damage caused by sharp edges.

Lifting Polyester Endless Slings

The Estil Endless type Slings RS are available from 1 Ton up to 10 Ton in many different lengths. All according to NEN-EN 1492-2 with a safety factor of 7:1. Protective covers for protection against damage caused by sharp edges.

Estil Lashing Straps & Cargo Protective Equipment

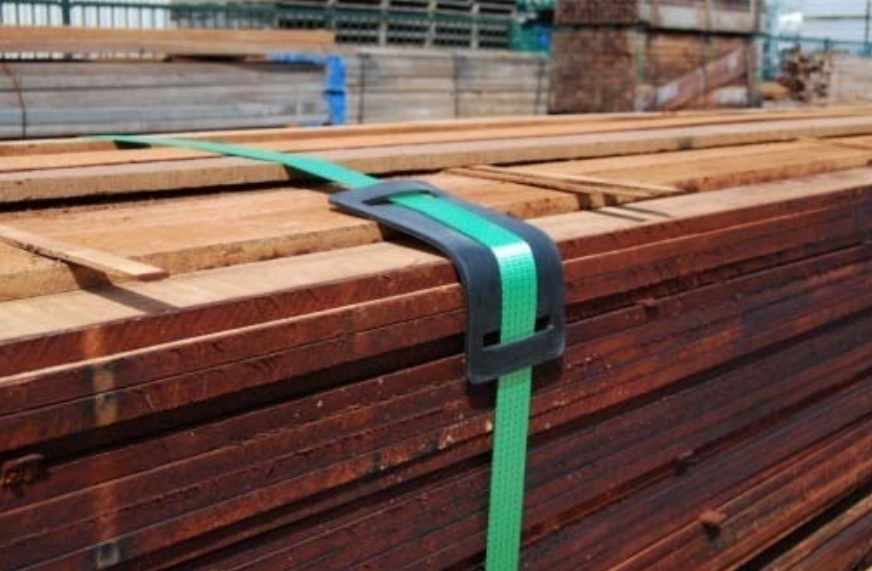

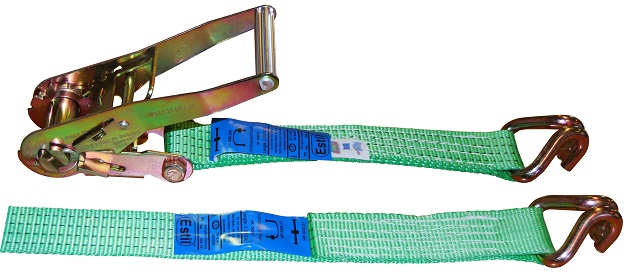

All Estil Lashing Straps are produced according to EN 12195-2 and DIN 60 060 and provide cargo safety. Label with all needed product info is attached to the strap. For cargo with sharp edges what can damage you cargo strap we offer special corner protectors. Cargo straps are available with hooks and ratchets or with buckles depending on load capacity and application. Cargo nets are available in 2 different mesh opening dimensions. Corner Protectors BH Series are available for Lashing Straps and Lifting Slings as well.



Estil Hydraulic Pallet Transport Equipment

Hand Hydraulic Pallet Trucks are available 8 different types. From a standard 2.000 kilo capacity truck up to a full stainless steel type. For the most common jobs the type EPW25 is the right tool with a lifting capacity of 2.500 kilo, complete with tandem wheels. With a fork dimension 1150 x 540 mm makes it very useful for EURO PALLETS. Special short versions type EPKW for small turning circles and weighing types with a capacity up to 2.500 kilo. For areas where corrosion can be an issue for standard pallet trucks type EPWG in galvanized steel and type EPWR in stainless steel is a great solution. The Pallet Stacker is available as a hand hydraulic stacker type EHS with a capacity of 1.000 kilo.  The ideal tool for places where a pallet truck is not avialable or too expensive. Two different types of Pallet Lifting hooks which are self balancing and are the ultimate tool to move pallets horizontally and vertically with a crane or a hoist.



Intern Transport Equipment

Several tools to make transport inside a warehouse or factory much more easy. Hydraulic Drum Lifters and carriers in multiple versions for lifting and transport of steel barrel up to 210 liters. Mobile workshop cranes EVW series lifting and transport of all kind of cargo with a load capacity up to 2.0 Ton. For easy transport of objects without space underneath there is the Forklift Traverse. It has a compact solid construction and is equipped with a safety lifting hook with self closing latch. Available in a load capacity up to 5 Ton.

Estil Steel Lifting Jacks

Steel Mechanical Lifting Jacks are available in several types and load capacities from 1.5 to 10 Ton. The standard version is the EDKB (short height) and the EDKP (standard height).  Th EDKV is a version with fixed locking points ( with pin and chain) to secure the load. The ED-V version comes with 10 different claw adjustment positions. This is a very suitable jack in case large heights are required. The Hi-Lift is a handy tool for service engineers. Capacity is 3 Ton and is easy and fast to adjust in several heights.

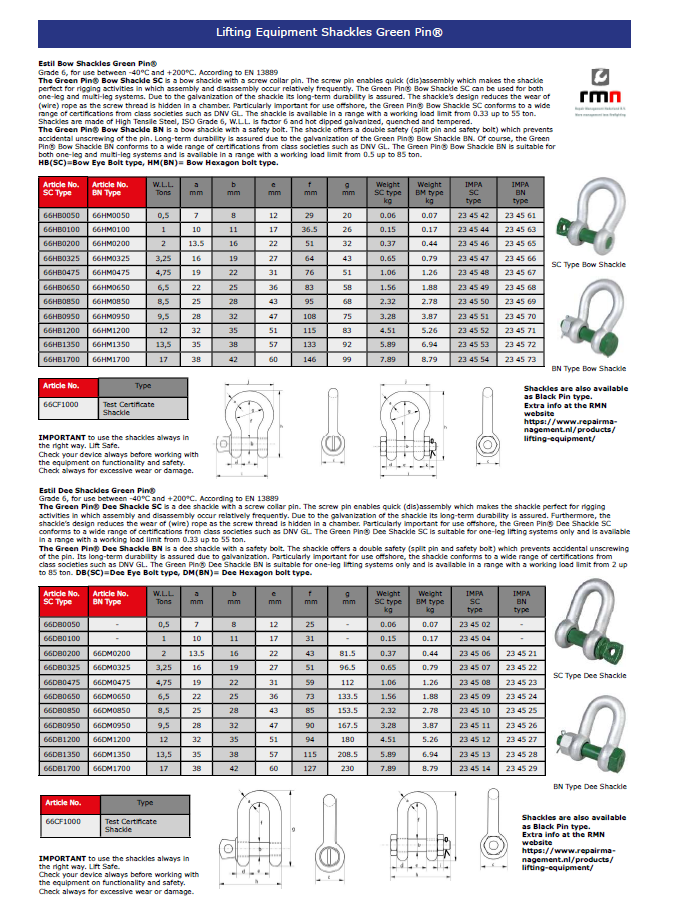

Green Pin® Shackles for lifting

Bow Shackles and Dee Shackles in series Green Pin®,  on request also available in Black Pin®. Load capacity from 0.33 up to 85 Tons. The Green Pin® shackles are availalbe with a screw collar pin and with a safety bolt. Quality is Grade 6 and to use in temperature conditions between -40°C and +200°C.  According to EN 13889. The shackles are Approved and Certified by several Class Societies such as DNV GL. They are made of High Tensile Steel, hot dipped galvanized, quenched and tempered. With this the durability is assured.



Estil Welding Eyes, Eye Bolts and Eye Nuts

To make fast and easy a lashing point to a steel surface. The Weld-On rings are Grade-8 with a base forged from St 52-3 and a ring of 23Nm. Welding must only be carried out by a qualified welder (according to EN287-1) in accordance with DIN 8563 resp. 15429. Eye Bolts and Eye Nuts according to DIN 580 and DIN 582 to create a lifting point on products without a standard lifting point or difficult to handle products. They are available in galvanized and black version in quality C15.



Lifting Chains

Available in steel Grade 100 and Grade 80. Also available in Grade 50 Stainless Steel. High performance lifting sling chains according to DIN EN 1677 and EN 818-1, -2 and -4. Grade 100 has a 25% higher safe working load than Grade 80. Weight saving of about 30% is therefore more manageable. Great strength, high wear resistance, long service life and easy to maintain. Simple to recognise by an ID-tag connected to the sling chain. For use between -40°C and +200°C. When order specify length of chain, diameter of chain, type of hook, single leg, 2-leg, 3-leg or 4-leg type. Each sling chain combination comes with a test certificate. User information can be found on ID-Tag connected to the sling.

Estil Lashing Spanner with ratchet

Lashing chain spanners KSR are for use in combination with the KW6 lashing chains and CAC lashing hooks. The ratchet on the spanner simplified the lashing job.
