Valves, Mud boxes, Bellows, Strainers

Float Level Switches by EMCO CONTROLS

EMCO Controls is a Danish instrumentation company. The factory is placed in Hillerød near Copenhagen. From their premises in Hillerød, domestic and export sales as well as manufacturing are conducted. Emco Controls employs skilled people with many years of experience in manufacturing of mechanical instruments. EMCO Controls originates back to 1966 and has right from the beginning been recognized as a manufacturer of process control equipment including primary elements for flow measurement.







Globe Valves

We offer a full range of valves with or without material 3.1B certificate and when required with Classification Society testing. We can provide JIS, DIN and ANSI Valves with a short lead time.

Globe Valves SDNR Dimensions from DN25 up to DN400 with several body materials and inner materials. Pressure ratings from PN 10/16 up to PN 160.

Globe Valves DIN with fixed disc. Dimensions from DN25 up to DN400 with several body materials and inner materials. Pressure ratings from PN 10/16 up to PN 160.

Bellow Sealed Globe valves. Dimensions from DN25 up to DN400 with several body materials and inner materials. Pressure ratings from PN 10/16 up to PN 40.

Storm Valves. Dimensions from DN50 up to DN150 with several body materials and inner materials. Pressure rating PN4 and flanges according to PN10.

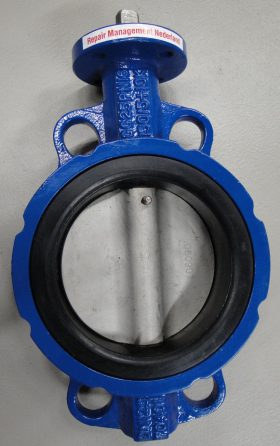

Butterfly Valves. A full range of concentric butterfly valves with a vulcanised liner. Standard with a Ductile Iron body, an Aluminium Bronze disc, a Stainless Steel shaft and a NBR liner. Other material combinations are possible. Choice in different types WAFER, DOUBLE FLANGED, LUG, MONO FLANGED short and long patern.

Remote Controlled Quick-Closing Valves

Remote Controlled Quick-Closing Valves, compact angle type, spring loaded. For maximum operating temperature up to +80ºC.

Danfoss Solenoid Valves

Danish manufacturer with a global network of offices. We offer Danfoss Solenoid valves.

Datasheet Solenoid valve type EV220B for steam, water, compressed air, oil and gases.

Datasheet Solenoid valve type EV224B for compressed air

Datasheet EV Coils for solenoid valves

Danfoss Solenoid Valve EV224B web











Ball Valves Standard threaded made of nickel plated brass, pressure rate up to PN50, 3-way valves nickel plated brass with a pressure rate of PN25 and available with L-bore and T-bore.



Threaded Ball Valves for Potable water applications according to EN 13828 and DVGW W 570 or KIWA. The special shaped ball prevents water to stay behind in the valve and prevent so bacteria grow in the valve. Pressure rates up to max. PN50.



Threaded Ball Valves  Stainless Steel AISI 316 for temperatures up to +200°C and pressure rates up to PN150. Available with full bore and reduced bore, as 1- 2 – and 3-piece house and 3-way with T-bore and L-bore.



Threaded Mini Ball Valves for water, heating, air conditioning and compressed air systems. Maximum pressure up to PN15. Available with red and black handle. Ideal for narrow spaces where a standard ball valve doesn’t fit.



Special Threaded Safety Ball Valves for use in compressed air systems with a pressure relieve. For pressure rate up to PN12.

Threaded Quick Closing Valves  especially for closing a gas-oil fuel line in the engine room in case of emergency situations. In one action the fuel line is closed.

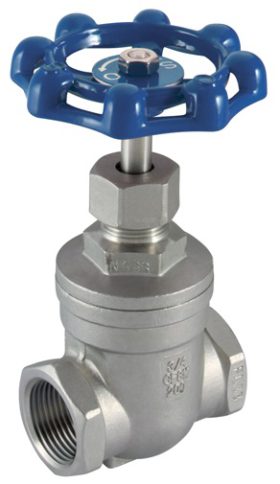

Threaded Gate Valves in bronze PN16 and PN20 versions and in Stainless Steel AISI 316 with a pressure rate of PN14

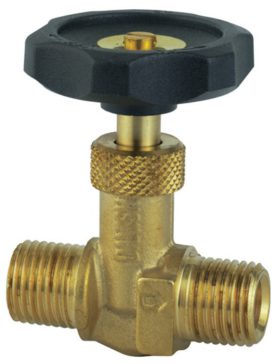

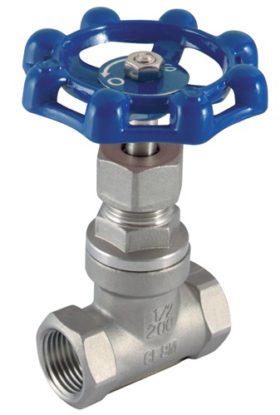

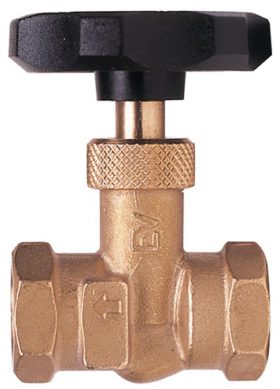

Threaded Needle Valves with a brass body for temperatures up to +80ºC and pressure rate up to PN100, Threaded Globe Valves in Stainless Steel AISI 316 temperature resistant up to +200ºC and pressure rated PN14.



Threaded Check Valves for water, heating, air conditioning, compressed air and fuel systems. Type Europa, York and Roma can be used in horizontal, vertical and oblique positions as well. Type Swing can only be used in hoizontal position. Body material is brass, resistant against temperatures up to +100ºC. Check Valve Swing is also available in Stainless Steel AISI-316 and is resistant against temperatures up to +200ºC.



Threaded Y-Strainers in brass for temperatures up to +110ºC and pressure rate PN16, BSP threaded and Y-Strainers stainless steel AISI-316 for temperatures up to +110ºC and pressure rate PN55, BSP threaded. Replacement filter inserts are made from Stainless Steel AISI-316 for both brass and stainless steel types.



Mud Boxes. A range of Cast Iron with Stainless Steel screen mud boxes according to DIN 87151 with flanged connections. Dimensions fro DN25 up to DN600 in straight (D type) and Angle (E type) model.

SPX FLOW, SPX PLENTY Strainers and Filters

SPX Flow & PLENTY two big manufacturer with a long history on filtration, pumps and mixers. RMN offers the range of Single and Duplex strainers and Seawater filters. High quality and performance. Choice in materials and dimensions.

SPX small Duplex D-Type Basket Strainer 1-8 inchSPX Simplex Basket strainer 6-20 inch

JIS Stop Valves and Globe Valves

Marine quality JIS Stop valves and globe valves straight and angle in several materials and pressure rate 5K, 10K, 16K & 20K. All from European maker.

JIS Stop Valve F7311JIS Stop Valve F7312

DIN Stop Valves and Globe Valves

Marine quality DIN Stop valves and globe valves straight and angle in several materials and pressure rates. All from European maker.

DIN Stop Valve 467002-477001DIN Stop Valve 467152-467151DIN Stop Valve 467002-104











Expansion Joints Metal Bellows

Metal expansion joints (bellows) for steam lines, thermal oil lines etc. Standard types and custom made bellows.

Expansion joint metal bellow element









Cargo Line compensators

Custom made metal cargo line compensators. For different temperatures and products available such as for bitumen cargo lines.

compensator-bitumen-cargo-line

Exhaust gas compensators

Exhasut gas bellows are available as standard single bellow with or without an inner sleeve (picture with inner sleeve). Also available as double layer bellow. Material stainless steel AISI 321 and with carbon steel flanges. Exhaust gas bellows are standard designed for temperatures up to 550°C and a pressure of 1 bar (0.10 MPa).

exhaust-gas-compensator-with-inner-sleeve

Insulation Matress

We offer custom made mattresses for exhaust gas bellows and other applications. With a very short lead time and in a wide temperature range.

Insulation matras for exhaust gas bellow web

Sight level gauges

Sight level gauges in brass material with manual closing or self-closing. Optional with drain valve. For gas oil, diesel and water and medium temperatures up to 60ºC. Full range of spares available.

Examples of the range of products we offer are:

  • Globe valves and Angle valves
  • Check Valves
  • Screwed Valves
  • Solenoid Valves
  • Ball Valves
  • Y-Strainers
  • Butterfly Valves
  • High Performance Butterfly Valves
  • Strainers
  • Mud Boxes, Sea water filters
  • Needle Valves
  • DIN Cocks
  • Double Flanged Butterfly Valves, overboard valves
  • Safety Valves
  • Expansion bellows
  • Exhaust bellows

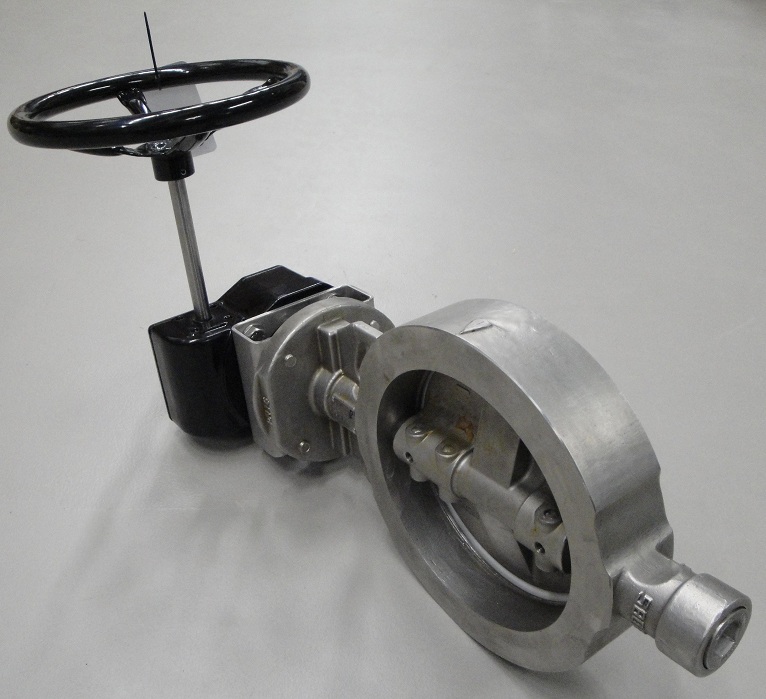

High Performance Butterfly Valve Stainless Steel
