Miko Marine Miko Fix®

Miko Marine Miko Fix® Smart underwater fixing

Miko Marine Miko Fix Smart Underwater Fixing

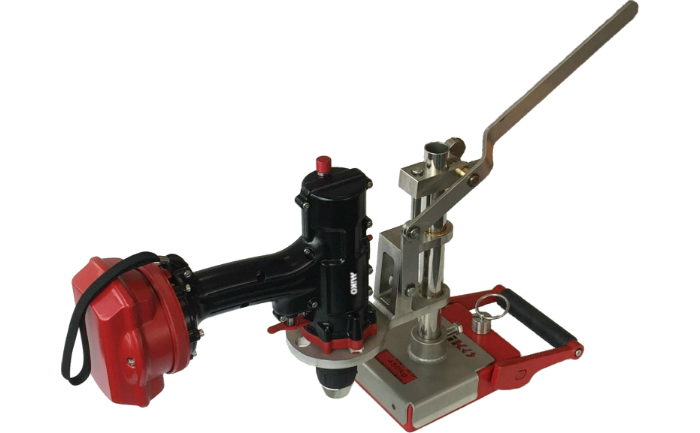

Miko Fix® is a battery operated and cordless fastening system for underwater drilling and fastening. The compact and versatile system can be used for a large variety of underwater tasks, including operations where hydraulics or welding are normally required.

The underwater drill can be operated at water depths down to 50 m. The drill is mounted into a jig, and the system is kept in a secure and stable position on a magnetic foot plate.

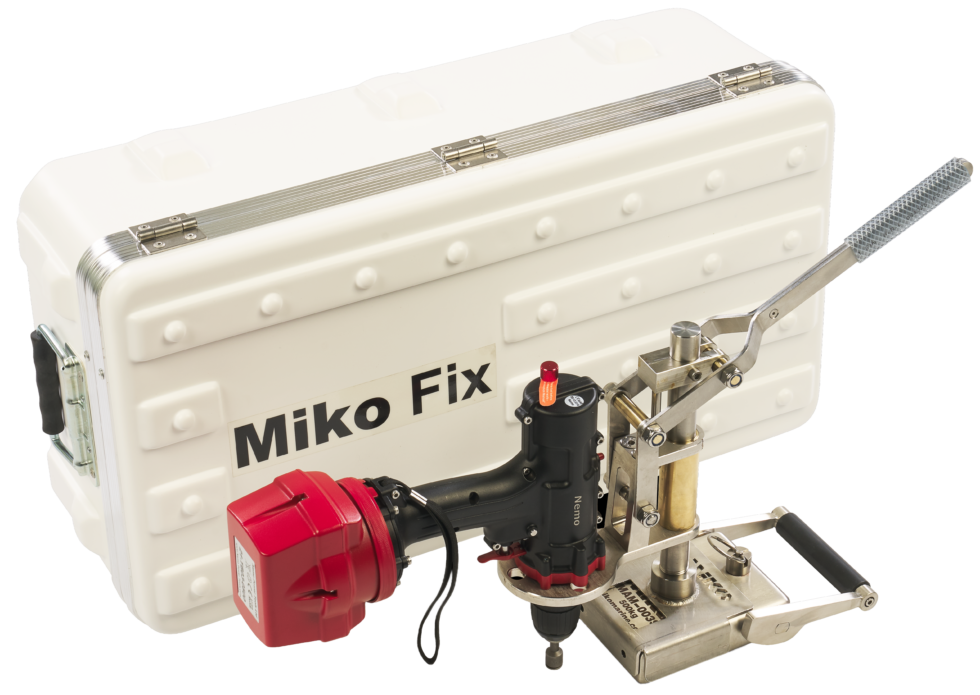

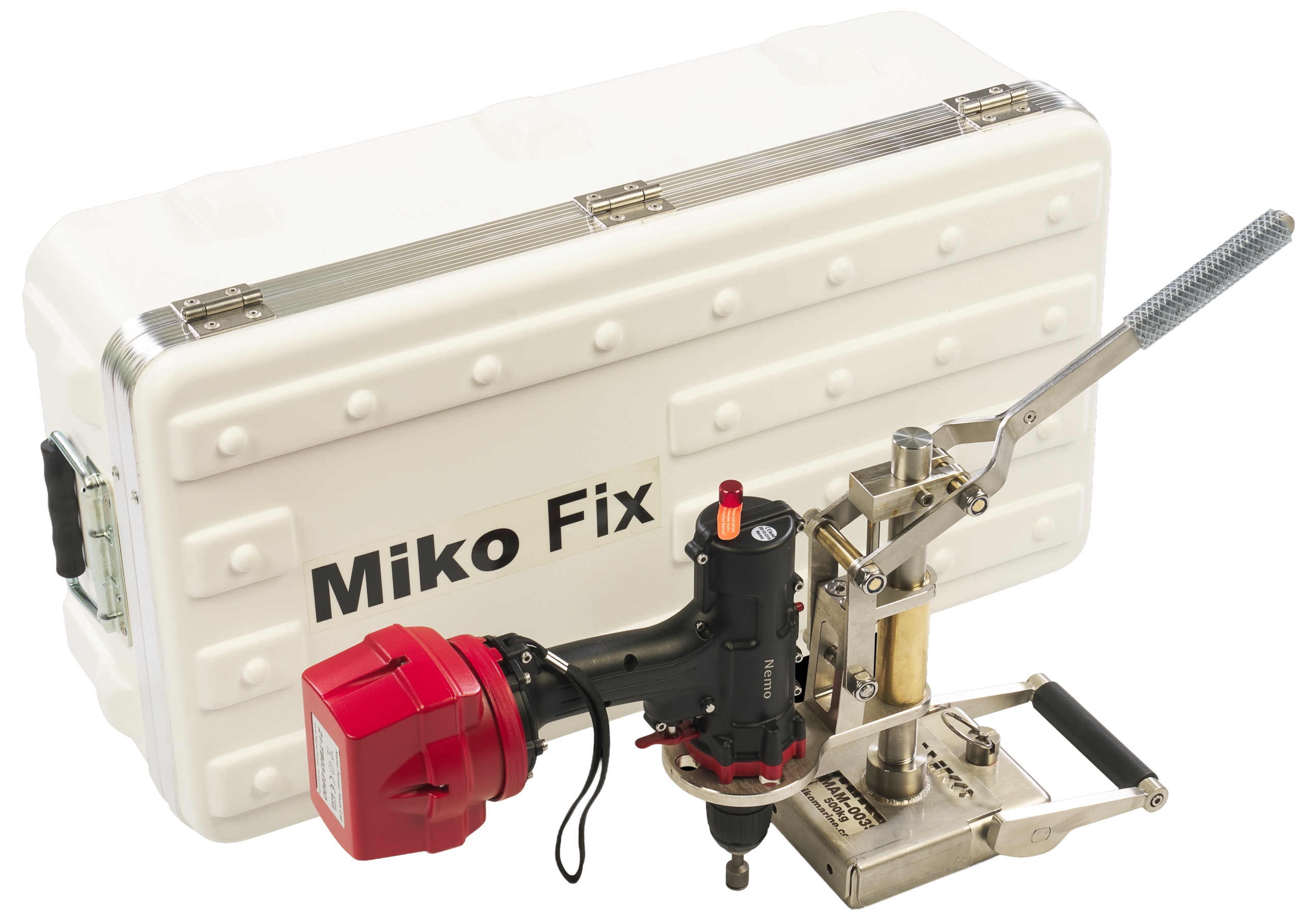

The drill is equipped with a speed setting, rotational direction switch, LED lights and a torque setting with 16 steps. The drill and drill stand are supplied in a waterproof heavy duty plastic case.

Typical applications

  • Anode fixing

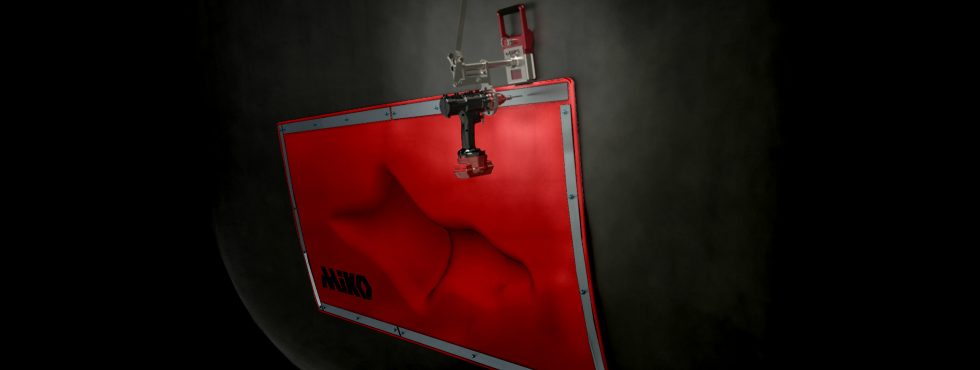

  • Fastening of FlexiShape Miko Plaster®
  • Fastening anchor points for guiding or lifting wires
  • Fastening brackets or adaptor plates for other tools

Max. Water Depth
50 m

Chuck Size
13mm

Max. Steel Thickness
22 mm

Max. Torque
39 N/m

Battery
18V 3Ah

Holding Force
450 kg

Footprint (Magnet)
155 x 115 mm

Net Weight
Magnet: 3 kg
Drill & jig: 5,5 kg

Submerged Weight (complete)
6,0 kg

Gross Weight
Magnet: 10 kg
Drill & jig: 10 kg

The up to 450 kg holding force of the magnet enables the diver to operate the tool efficiently in any orientation, as well as ensuring the necessary counterforce needed to drill and secure the Miko bolt to the hull within a few minutes. The self tapping Miko bolt can penetrate up to 22 mm of thick steel plates.

The intuitive system is easily positioned and secured to the drilling surface by the magnet. The Miko bolt is secured in the screw holder. The drilling position can be adjusted accurately by rotating the drill around the center rod.

When the drill is positioned as desired, pull the handle to feed and press the On/Off trigger switch to start drilling. Use the magnet lever to release and reposition.

Contents of Miko Fix

  • 1 pcs Cordless Electric Drill
  • 1 pcs Stainless Steel Drill Stand
  • 1 pcs MAM-003 Miko Anchor Magnet
  • 2 pcs Screw Holder
  • 100 pcs Self Tapping Screws
  • 1 pcs Spare Battery
  • 1 pcs Spare Chuck
  • 1 pcs Pump to Pressurize the Drill
  • 1 pcs Battery Charger
  • 1 pcs User Manual
