Scangrip LED EX ATEX

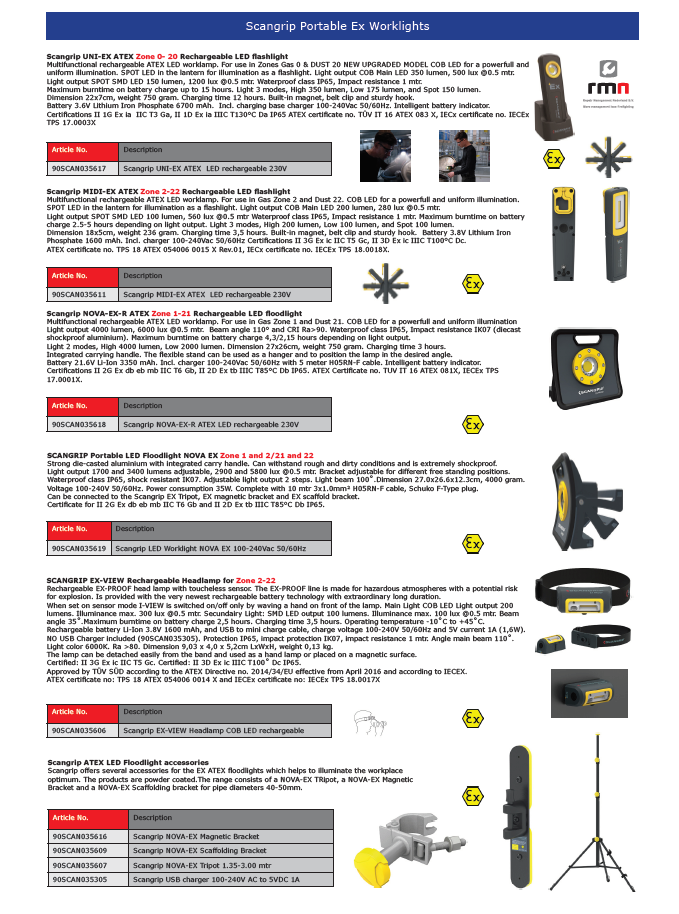

SCANGRIP EX PROOF work lights   SCANGRIP NOVA-EX & NOVA-EX R

A special part of the range are the SCANGRIP EX – PROOF LED work lights. Certified for use in EX Zone 1 & 2 for GAS and EX Zone 21 & 22 for DUST.

This EX PROOF range contains a rechargeable multifunctional handheld lamp the UNI-EX, the MIDI-EX, two floodlight type work lights the NOVA-EX with 10 meter cable for use on 100-240V 50/60Hz and the NOVA-EX R (rechargeable) that can be used in areas where there is no access to electricity and the headlamp EX-VIEW with motion sensor. The EX range is completed with accessories to provide user flexibility to illuminate all kind of work areas when needed. The accessories contains a magnetic EX bracket, a Scaffolding EX bracket and a EX Tripot.

The SCANGRIP NOVA-EX is a powerful LED work light providing an extremely bright illumination. The lamp is equiped with a 10 meter cable with safety plug and provides up to 3.400 lumen (5.800 lux@0.5mtr). Power connection is 100-240V 50/60Hz. The work light is extremely energy safe with only  35W on power consumption. The lamp can be used indoor and outdoor as well and is IP65 and IK07 protected. The lamp can be easily mounted on the SCANGRIP TRIPOT, MAGNETIC WALL BRACKET or SCAFFOLDING BRACKET. The lamp is suitable for use in Zone 1-21 & Zone 2+22

Scangrip article number 03.5619   RMN article number 90SCAN035619

The SCANGRIP NOVA-EX R is almost the same work light but with a built-in battery providing light where there is no access to power. The powerful illumination offers 4.000 lumen (1.200-6.000 lux@0.5mtr) light output. Operating time with full battery is up to 6 hours. Within 2 hours the battery is fully charged. The lamp comes with also a 5 meter charging cable with Schuko plug. The lamp can be used indoor and outdoor as well and is IP65 and IK07 protected. The lamp can be easily mounted on the SCANGRIP TRIPOT, MAGNETIC WALL BRACKET or SCAFFOLDING BRACKET. The lamp is suitable for use  in Zone 1-21 & Zone 2+22.

Scangrip article number 03.5618   RMN article number 90SCAN035618

The SCANGRIP MIDI-EX LED is a rechargeable handheld worklight for the professional user. Equiped with a powerful high efficiency COB LED in the front of the lamp and a SMD LED main light. The spot provides 100 lumen and the main light 100/200 lumen. The lamp is extremely flexible for the user. The head can tilt up to 180 degrees, the powerful magnet in the base can adhere to metal surfaces and the build-in turnable sturdy hook can be used to place the lamp where light is needed. A built-in belt clip makes it possible to carry the lamp to the belt so you always have light close at hand.  The lamp is suitable for use  in Zone 1 & Zone 2.

Scangrip article number 03.5611   RMN article number 90SCAN035611



The SCANGRIP UNI-EX LED is a multifunctional rechargeable handheld work lamp with a charging base. Equiped with a powerful high efficiency COB LED in the front of the lamp and a SMD LED main light. The spot provides 95 lumen and the main light 150/290 lumen. The lamp is extremely flexible for the user. The head can tilt up to 180 degrees, the powerful magnet in the base can adhere to metal surfaces and the build-in turnable sturdy hook can be used to place the lamp where light is needed. A built-in belt clip makes it possible to carry the lamp to the belt so you always have light close at hand.  The lamp is suitable for use  in Zone 1-21 & Zone 2-22.

Scangrip article number 03.5600   RMN article number 90SCAN035600



The SCANGRIP EX-VIEW rechargeable headlamp is supplied with the newest COB-LED technology. The EX VIEW provides an extremely powerfull illumination and has a wide view on the work place. The lamp has a sensor mode and can easily be switched on/off by waving a hand in front of the lamp even with a thick glove. As an extra option the lamp can be removed from the head band base and mounted on a magnetic surface or used as a handlamp for inspection purpose. The Spot provide 100 lumen and floodlight 200 lumen light output. Operating time is up to 5 hours on a battery charge. The weight is only 185 gram which is extremely lightweigth compared to other explosion proof headlamps on the market. The lamp is suitable for use  in Zone 1 & Zone 2.

Scangrip article number 03.5606   RMN article number 90SCAN035606



SCANGRIP EX Accessories are:

The SCANGRIP NOVA-EX MAGNETIC BRACKET

Scangrip article number 03.5616   RMN article number 90SCAN035616

The SCANGRIP NOVA-EX SCAFFOLDING BRACKET

Scangrip article number 03.5609   RMN article number 90SCAN035609

The SCANGRIP NOVA-EX TRIPOT

Scangrip article number 03.5607   RMN article number 90SCAN035607
