Miko Marine Tanker-Kit

The Tanker Kit is well proven as a cost-saving alternative to dry-docking. It is used world-wide for in-water repair or survey of floating structures.

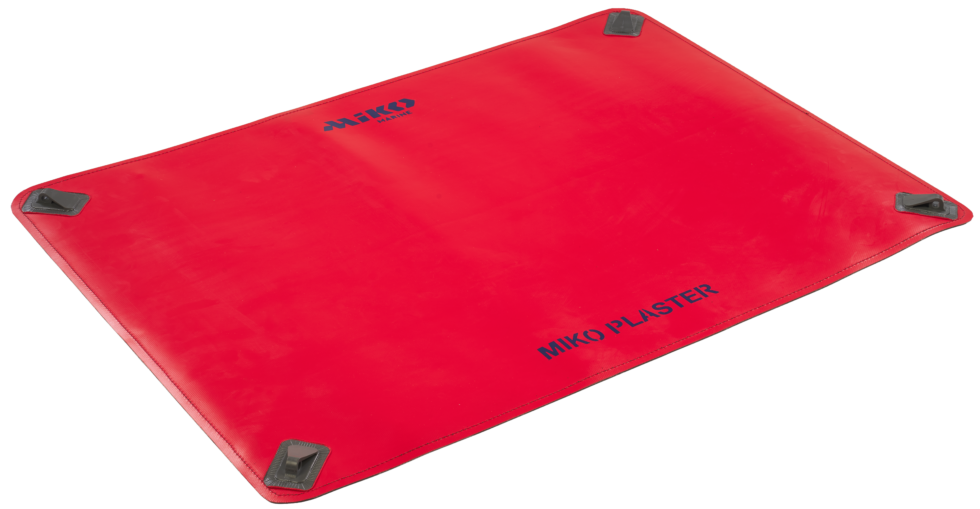

Miko Plaster® – the main component of the Tanker Kit – is a magnetic tarpaulin that provides a temporary, but reliable, watertight seal below the waterline. It is qualified by DNV GL for blanking off sea chests, water inlets and outlets directly in the water. The seal is achieved by the water pressure and the magnetic adhesion between the patch and the steel surface.

No hot work or hydraulic tools are required for the installation. Supplementary tools required for installation are included in the kit.

Contents

• 2 pcs 900 x 1250 mm Magnetic Miko Plaster®
• 2 pcs 2250 x 2500 mm Magnetic Miko Plaster®
• 4 pcs MAM-001 Miko Anchor Magnets
• 10 pcs MPM-002 Miko Permanent Magnets
• 2 pcs MHT-001 Handling Tool for MPM-002
• 4 pcs MHT-002 Handling Ropes
• 1 pcs Installation/Storage Drum

Gross weight
220 kg (incl. Euro pallet)

Length
2300 mm

Also available as Tanker Kit Light

Contents

• 1 pcs 900 x 1250 mm Magnetic Miko Plaster®
• 1 pcs 2250 x 2500 mm Magnetic Miko Plaster®
• 4 pcs MAM-001 Miko Anchor Magnets
• 10 pcs MPM-002 Miko Permanent Magnets

• 2 pcs MHT-001 Handling Tool for MPM-002
• 4 pcs MHT-002 Handling Ropes
• 1 pcs Installation/Storage Drum

Gross weight
153 kg (incl. Euro pallet)

Length
2300 mm

Miko Marine Magnetic-Miko-Plaster-på-skip

Installation Principle Tanker Kit

The drum is used for the storage and transportation of the Miko Plaster®, as well as for its installation. Both the drum and the larger patches are close to neutral buoyancy in water.

One MAM-001 Miko Anchor Magnet is placed outside each corner of the sea chest or opening to be patched.

The drum is lowered into the water from the deck by using the handling ropes, while the diver positions it correctly. With the two first corners secured to a MAM-001, the Miko Plaster® is rolled out from the drum. The diver can easily re-position the patch if necessary.

The last two corners are secured to the other MAM-001 once the patch is completely rolled out in the correct position.

The MPM-002 Miko Permanent Magnets are placed on top of the patch to further increase the seal and to prevent it from being peeled off by any current.

Installation-principle-Tanker-Kit1
