NTE SOLAR Light Series

NTE SOLAR LIGHT SERIES sustainable light solutions for a better future

100% ENERGY SAVINGS WITH MAXIMUM RESPECT FOR ENVIRONMENT

The NTE Solar Series includes state-of-the-art LED technology, a programmable lighting system and light intensity control. Being able to reach a height of 7 meters, it is the ideal option for rural roads, landscaped areas, bike lanes, pedestrian walks, parks or playgrounds. With the possibility of including a presence detector, for a minimum light pollution, especially in isolated or low traffic areas, maintaining the safety of pedestrians at all times.

Sustainanability, fully renewable clean energy along with recylable luminaires.
Efficiency compability, any of the Efficiency Road Luminaires can be turned into solar and can be combined with the remote management system. If prefered the NTE LED Floodlights up to 12K from the PM series can be used.
100% savings, with programmable power and an option to include a motion detector for minimal light pollution.

The complete Solar Kit contains of a Solar Panel, a Lithium-Ion battery of high capacity with low weight, great durability (minimum of 5 years useful life) and IP66 protection. In addition it includes a charge controller and the option to install a presence sensor. Compatible with the High Efficiency Road Luminiares, with simple mounting on any mast or standard column and up to 4 days of operation depending on the model.

Regulation profile with motion sensor
The system has a motion sensor which reduces light intensity and consumption, during periods of time when the sensor does not capture movement.
The system is scaled for a duration of more than two days with a charging time of less than 6 hours in the worst case. The luminaire will automaticallly turn on below the minimum solar radiation value (twilight sensor). As long as it does not detect presence, it will perform the regulation curve without detection. The automatic summer-winter change adjusts working hours at different levels of regulation. The Controller Saving Mode allows automatic lighting adjustment under critical levels of the system. The system is scaled for a duration of more than 2 days with charging time of less than 6 hours in the worst case scenarion if they occur.
Below a standard example

The luminair will switch on automatically when it does not exceed the minimum daylight. The system starts according to the established scedule. In above example, the luminaire starts at 100% operation and after 4 hours it goes to 50% light with the action of the motion detector. The motion detector can be set to 20% at the time of non-detection, which would rise to 50% after detecting presence with a courtesy time of up to 200 seconds. In the example, the last hour is set to 50% without detection. The luminaire will turn off automatically when it exceeds the minimum of daylight, not needing to complete the curve.

Regulation profile with motion sensor
In this case the system is scaled for a duration of more than two days with a charging time of less than 6 hours in the worst case. The automatic summer-winter change adjust working hours at different levels of regulation. The Controller Saving Mode allows automatic lighting adjustment under critical battery levels, if they occur.



The luminaire will turn on automatically when it does not exceed the minimum of daylight. The system starts according to the established schedule. In the above example, the luminaire starts at 100% operation and after 4 hours it goes to 75% light, 4 hours later it goes to 50% and at dawn it rise to 100% lighting. This programming is optional, designed for a longer system life. The luminaire will turn off automatically when it exceeds the minimum solar radiation, not needing to complete the curve.

Saving mode
When the battery charge is below the critical charge point, the luminaire enters Saving Mode, gradually reducing the intensity, in order to avoid complete battery discharge.

CONECTIVITY

THE MOST EFFICIENT WAY TO MANAGE YOUR SOLAR INSTALLATION



The luminaires with motion sensor, regardless of their technology, are not suitable for inter-urban roads in which there is moderately fast traffic, being common in pedestrian areas or bicycle lanes.

This limitation is given by the height / opening ratio of the sensor and is not recommended for sections over 25km / h, although a correct performance would require its evaluation in each case.

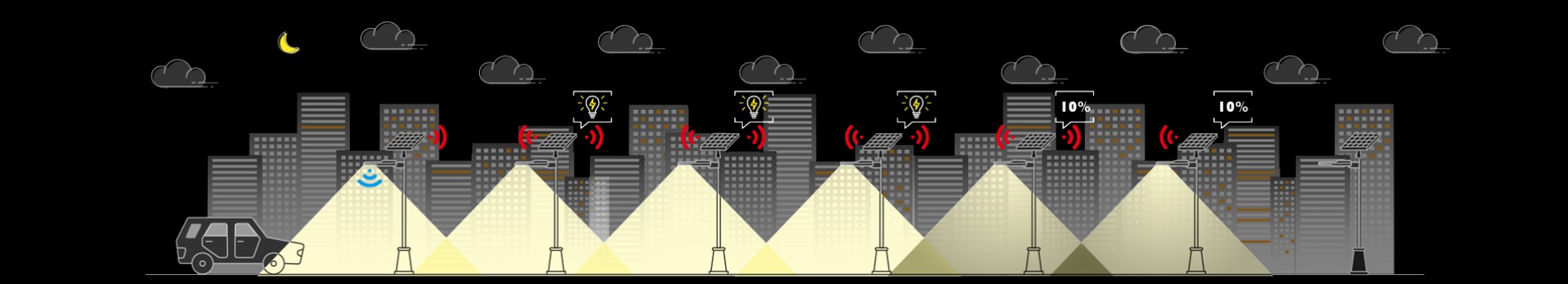

From NTE we offer the integral solution to this problem with an encrypted wireless communication system between the solar kits, valid for one-way and two-way routes. This resource allows the system, after the detection of one of the motion sensors, to activate the lighting of successive luminaires covering up to a total of 250 m, depending on the distance between the posts.

For this, NTE uses MESH network technology by radio frequency, allowing all solar luminaires in a single installation to communicate with each other wirelessly without the need to add signal repeaters and avoiding the eventual loss of data in the event of a power failure  any of the points.

APP CONTROL

NTE has developed its own application compatible with Android / IOS systems designed for the end user. The application, together with a small USB receiver that connects directly to the mobile terminal, will allow users to communicate individually with each of the luminaires.

In this way, the user will be able to access the data collected by the luminaire during its hours of operation, as well as customize the configuration parameters of the complete solar kit, including the presence sensor.

COMPATIBLE ROAD LUMINAIRES

THE EFFICIENCY LUMINAIRES THAT COMPLEMENT THE EFFECTIVENESS OF THE SOLAR KIT

NTE Púlsar

NTE GEF-Y

NTE GEF

NTE FEF

NTE FEF-M-LT

NTE JEF-M

NTE JEF

NTE LEF-LT

See separate website page with the LED Road Luminaires

Below example of the Púlsar

COMPATIBLE NTE LED FLOODLIGHTS:

PM BASIC-LT  6K / 8K / 12K

PM BASIC 9K / 12K

PM PRO-LT 6K / 8K / 12K

PM PRO 6K / 9K / 12K
