The ultimate LED floodlights for Marine Applications.

Prismalence has a patented optical system with prismatic lenses. With good planning, our rectangular lights give greater possibilities to cover the surface to be illuminated compared to traditional round beams. Our closed systems give minimal stray light and high energy savings. As the lenses can be easily changed, the system is also extremely flexible.

RMN takes care for distribution of the range of LED floodlights in the Marine & Offshore for Prismalence. With the new updated versions of the Prismalence LED Floodlights, a number of those are now suitable for use in ATEX Ex Zone 1, 21 & 2, 22.

Prismalence STELLA R LED Floodlights 120 & 150W IP67

Professional LED Floodlight with large dissipation area of standard optic 60⁰x90⁰. Water and shock protected LED fixtures for general heavy duty applications. Vibration resistant.
Especially developed to use in wet, hot or cold harsh environments. Powder coated high purity aluminiumbody. Quick release between fixture and ballast for fast service and mounting.
Built in lens protection. Ballast built in a separate box IP67 on the fixture.
LED packs and ballast easiliy replaceable. Multiple rectangular light pictures via patented prismatic hardened glass lens system. Extra low glare/light polution (as per EU Night Sky Directive).
Complies with the strict EMI regulations. Heavy duty bracket included. Safety chain as option.
Does not interfere with Wifi , mobile data (3G/4G/5G) or electronics.
Suitable for corrosive atmospheres, marine and mining.
Special version: ATEX Ex Zone 2 & 22, Ex Zone 1 & 21, Ex Codes: EXII 2 G EX d IIC T4 Gb, EXII 2 D EX d IIIC T4 Db (certificate available).
Voltage 100-277 Vac (24 Vdc on request). Ambient temperatures -40⁰C – +60⁰C.
Available light colors 4000K (optional color 3000K – 5000K) CRI >70
LED module [L80B10] >100.000 hour, efficacy up to >110 lm/w
Optics available 15⁰x30⁰, 60⁰x90⁰, 30⁰x140⁰. Fitted with 18x Hi-power LED.
Salt-spray tested 1000h, vibration resistance 5G, wind speed design 55m/sec.
Start time 0.5 sec. to maximum lumen output. Ballast 10kV SP, OVP SCP, OTP, SELV.
Optional pole mount, wire mount. For multiple applications on heights of max. 24 mtr.

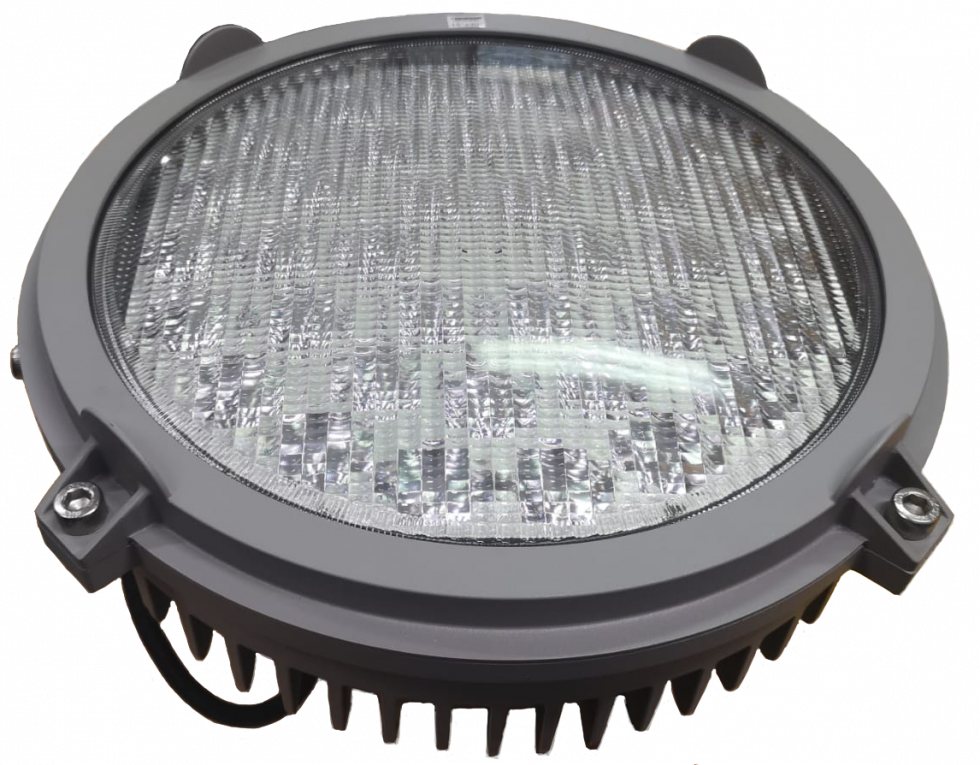

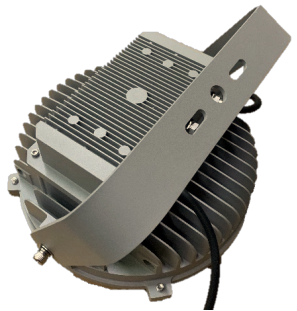

Prismalence Stella R LED Floodlights  300W IP67

Professional LED Floodlight with large dissipation area of standard optic 60⁰x90⁰. Water and shock protected LED fixtures for general heavy duty applications. Vibration resistant.
Especially developed to use in wet, hot or cold harsh environments. Powder coated high purity aluminium body. Quick release between fixture and ballast for fast service and mounting.
Built in lens protection. Ballast built in a separate box IP67 on the fixture.
LED packs and ballast easiliy replaceable. Multiple rectangular light pictures via patented prismatic hardened glass lens system. Extra low glare/light polution (as per EU Night Sky Directive).
Complies with the strict EMI regulations. Heavy duty bracket included. Safety chain as option.
Does not interfere with Wifi , mobile data (3G/4G/5G) or electronics.
Suitable for corrosive atmospheres, marine and mining.
Special version: ATEX Ex Zone 2 & 22, Ex Zone 1 & 21, Ex Codes: EXII 2 G EX d IIC T4 Gb, EXII 2 D EX d IIIC T4 Db (certificate available).
Voltage 100-277 Vac 50/60Hz. Ambient temperatures -40⁰C – +60⁰C.
Available light colors 4000K (optional color 3000K – 5000K) CRI >70
LED module [L80B10] >100.000 hour, efficacy up to >150 lm/w.
Optics available 15⁰x30⁰, 60⁰x90⁰, 30⁰x140⁰. Fitted with 36x Hi-power LED.
Salt-spray tested 1000h, vibration resistance 5G, wind speed design 55m/sec.
Start time 0.5 sec. to maximum lumen output. Ballast 10kV (20kV optional), dimming and DALI available.
For poles, mobile masts and cranes of any size up to 40 mtr. and hangars, warehouses, ship-yards and factories up to 80 mtr. General lighting in tough environment.

Prismalence Stella R LED Floodlight 240W IP67

Professional LED Floodlight with large dissipation area of standard optic 60⁰x90⁰. Water and shock protected LED fixtures for general heavy duty applications. Vibration resistant.
Especially developed to use in wet, hot or cold harsh environments. Powder coated high purity aluminium body. Quick release between fixture and ballast for fast service and mounting.
Built in lens protection. Ballast built in a separate box IP67 on the fixture.
LED packs and ballast easiliy replaceable. Multiple rectangular light pictures via patented prismatic hardened glass lens system. Extra low glare/light polution (as per EU Night Sky Directive).
Complies with the strict EMI regulations. Heavy duty bracket included. Safety chain as option.
Does not interfere with Wifi , mobile data (3G/4G/5G) or electronics.
Suitable for corrosive atmospheres, marine.
Voltage 100-277 Vac 50/60Hz. Ambient temperatures -40⁰C – +60⁰C.
Available light colors 4000K (optional color 3000K – 5000K) CRI >70, optional CRI>80.
LED module [L80B10] >100.000 hour, efficacy up to >140 lm/w.
Optics available 15⁰x30⁰, 60⁰x90⁰, 30⁰x140⁰. Fitted with 144x Hi-power LED.
Salt-spray tested 1000h, vibration resistance 5G, wind speed design 55m/sec.
Start time 0.5 sec. to maximum lumen output. Surge protection 10kV (20kV optional), Ballast IP67, OVP, SCP, OTP, dimming (DMX or DALI) available. For poles, mobile masts, QC/STS and RMG cranes of any size up to 40 mtr. and hangars, warehouses, ship-yards and factories up to 80 mtr. General lighting in tough environment.

Prismalence Stella R LED Floodlight 500W IP67

Professional LED Floodlight with large dissipation area of standard optic 60⁰x90⁰. Water and shock protected LED fixtures for general heavy duty applications. Vibration resistant.
Especially developed to use in wet, hot or cold harsh environments. Powder coated high purity aluminium body. Quick release between fixture and ballast for fast service and mounting.
Built in lens protection. Ballast built in a separate box IP67 on the fixture.
LED packs and ballast easiliy replaceable. Multiple rectangular light pictures via patented prismatic hardened glass lens system. Extra low glare/light polution (as per EU Night Sky Directive).
Complies with the strict EMI regulations. Heavy duty bracket included. Safety chain as option.
Does not interfere with Wifi , mobile data (3G/4G/5G) or electronics.
Suitable for corrosive atmospheres, marine and Zone 2 Ex applications.
Ballast can be placed up to 50 meter away (for example in the bottom of a high mast) or be attached to the body.
Voltage 90-305 Vac 50/60Hz. Ambient temperatures -40⁰C – +60⁰C.
Available light colors 4000K (optional color 3000K – 5000K) CRI >70, optional CRI>80.
LED module [L80B10] >100.000 hour, efficacy up to >170 lm/w.
Optics available 25⁰x30⁰, 60⁰x90⁰, 30⁰x140⁰. Fitted with 144x Hi-power 5050 LED.
Salt-spray tested 1000h, vibration resistance 5G, wind speed design 55m/sec.
Start time 0.5 sec. to maximum lumen output. Ballast 10kV (20kV optional), dimming (DMX or DALI) available.
For poles, mobile masts, QC/STS and RMQ cranes of any size up to 80 mtr. and hangars, warehouses, ship-yards and factories up to 80 mtr. General lighting in tough environment.

Prismalence Stella R LED Floodlight 600W IP67

Professional LED Floodlight with large dissipation area of standard optic 60⁰x90⁰. Water and shock protected LED fixtures for general heavy duty applications. Vibration resistant.
Especially developed to use in wet, hot or cold harsh environments. Powder coated high purity aluminium body. Quick release between fi xture and ballast for fast service and mounting.
Built in lens protection. Ballast built in a separate box IP67 on the fixture.
LED packs and ballast easiliy replaceable. Multiple rectangular light pictures via patented prismatic hardened glass lens system. Extra low glare/light polution (as per EU Night Sky Directive).
Complies with the strict EMI regulations. Heavy duty bracket included. Safety chain as option.
Does not interfere with Wifi , mobile data (3G/4G/5G) or electronics.
Suitable for corrosive atmospheres, marine and Zone 2 Ex applications.
Ballast can be placed up to 50 meter away (for example in the bottom of a high mast) or be attached to the body.
Voltage 90-305 Vac 50/60Hz. Ambient temperatures -40⁰C – +60⁰C.
Available light colors 4000K (optional color 3000K – 5000K) CRI >70, optional CRI>80.
LED module [L80B10] >100.000 hour, efficacy up to >170 lm/w.
Optics available 25⁰x30⁰, 60⁰x90⁰, 30⁰x140⁰. Fitted with 144x Hi-power 5050 LED.
Salt-spray tested 1000h, vibration resistance 5G, wind speed design 55m/sec.
Start time 0.5 sec. to maximum lumen output. Ballast 10kV (20kV optional), dimming (DMX or DALI) available.
For poles, mobile masts, QC/STS and RMQ cranes of any size up to 80 mtr. and hangars, warehouses, ship-yards and factories up to 80 mtr. General lighting in tough environment.
