NTE SISTEMAS LED LED FLOODLIGHTS the solution for optimal light
It consist a wide range of products. All with a high lumen/watt ration for a high light output with a low energy consumption. The range consist The BASIC and PRO types offering from 6.000 up to 40.000 lumen light output. The PEF types are the COB LED series offering from 3.400 up to 114.000 lumen and the COLOSSUS multiple module types offering from 43.000 up to 160.000 lumen which are mainly used on parking areas, port areas, sports stadiums mounted on high masts. The PM SPORT is specifically developed for PADEL TRACKS. All can be optional ordered with an extra protective coating layer for salt water environments. This special anti saline coating holds a certificate of durability in Marine Environments. For chemical environments we can optional apply another special protective layer.
Most of the NTE SISTEMAS LED Floodlights are dimmable, can be used on a DALI system. Optional is a motion detector and an emergency battery available.
COMPENSATION VALVE
The luminaires are IP67 and IK08 protection, have a compensating valve the equals the interior / exterior pressure of the luminaire by means of the air inlet / outlet, thereby prolonging the life of the joints and internal elements, reducing the tempreature and preventing the entry of moisture that can produce condensation.
1-10V DIMMABLE
System of regulation of power of ignition by means of two wires that arrive at the luminaire and define the power that exists between the wires, 1V-10% to 10V-100%. It works with any standard 1-10V regulator in the market.
TELEGESTIÓN
Control system and bidirectional telemetry that allows the user to know in real time the status of the luminaire, turn it on, turn it off, regulate its power or program several operating modes so that the behavior of the luminare adapts to each situation. It allows the inclusion of light and presence sensors of decision making.
Overview of the several LED Floodlight series

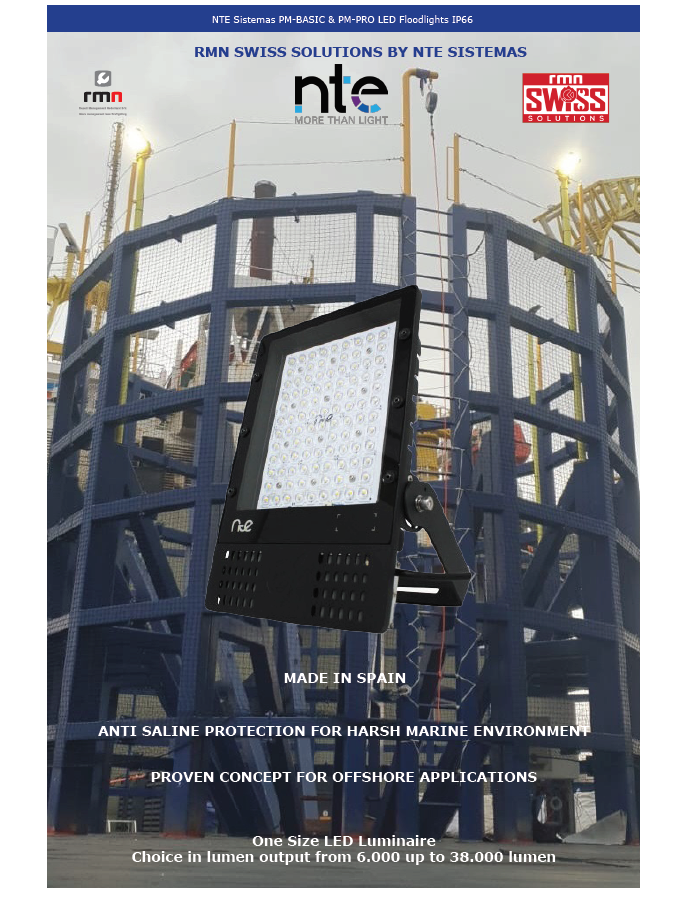

PM-BASIC & PM-PRO Series LED Floodlights datasheet
The PM-BASIC-LT LED Floodlight is equiped with a LED 3030 L80B10, the lumen/w ratio is 162. Rated life time >60.000 hours, warranty 3 years.
The PM-BASIC LED Floodlight is equiped with a LED 5630 L80B10, the lumen/w ration is >200. Rated life time >60.000 hours, warranty 3 years.
The PM-PRO LT LED Floodlight is equiped with a LED 3030 L80B10, lumen/w ratio is 165. Rated life time >60.000 hours, warranty 3 years.
The PM-PRO LED Floodlight is equiped with LED 3535 L90B10, lumen/w ratio is >180. Rated life time >100.000 hours, warranty 5 years. The Floodlight has special optics to meet the highest demants for large areas, general lighting, sports lighting and architectual lighting.
The PM-COLOSSUS LED Floodlights are equiped with LED 3535 L90B10, lumen/w ratio is >175. Rated life time >100.000 hours, warranty 5 years. The luminaires comes in 2, 3 and 4 module configurations. The are mainly used for large areas and mounted on high masts. The design of the luminaire and the optics system, it assembles make it possible the luminous flux in the upper hemisphere to be less than 1% of the total, thus fulfilling the moste demanding anti-pollution requirements.
PM-COLOSSUS Series LED Floodlights datasheet
The PEF LED Floodlights are equiped LED COB 2.0 L80B10, lumen/w ratio is >160. Rated life time >60.000 hours, warranty 5 years. They are IP65 and IK08 protected and comes in several dimensions with 1 up to 10 COB LED’s. The smallest version the PEF 3K and 5K are Class II ranking and can be used for portable worklight mounted on a tripod.
PEF Series LED Floodlights Datasheet

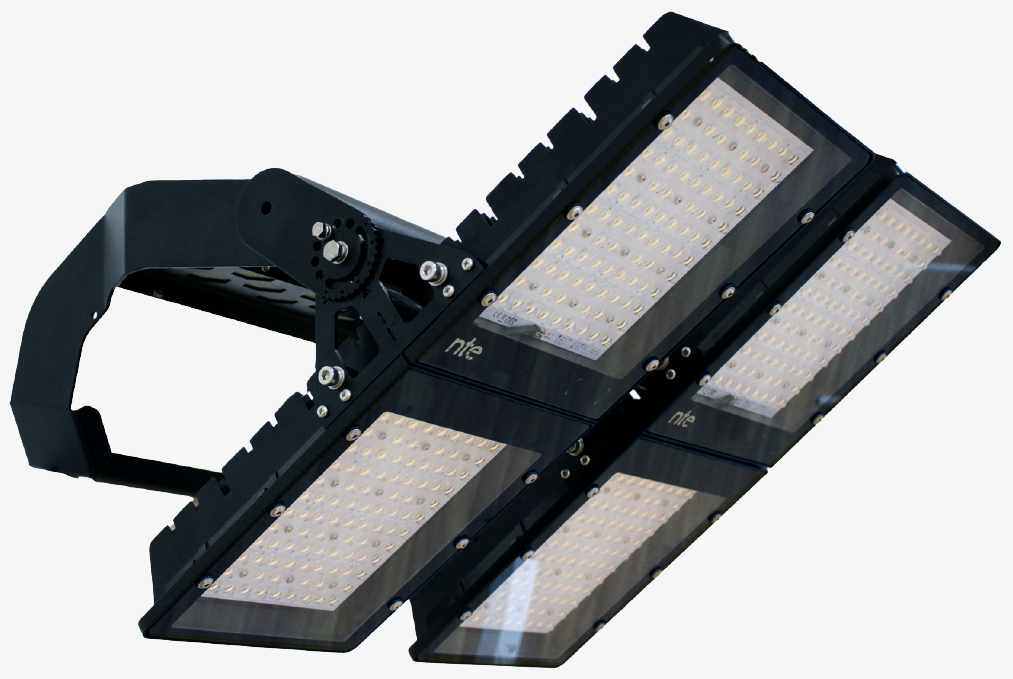

The PM-TITAN is the latest development by NTE in extreme efficient and high output LED Floodlights for sports stadiums, soccer fields and big industrial and harbour areas. The modules are equiped with the new LED 3535 L90B10 with a superior efficacy up to 180 lm/W. Several control options can be ordered for this light fixtures. For this specific light fixture we always provide the customer with a light calculation which meets its requirements.

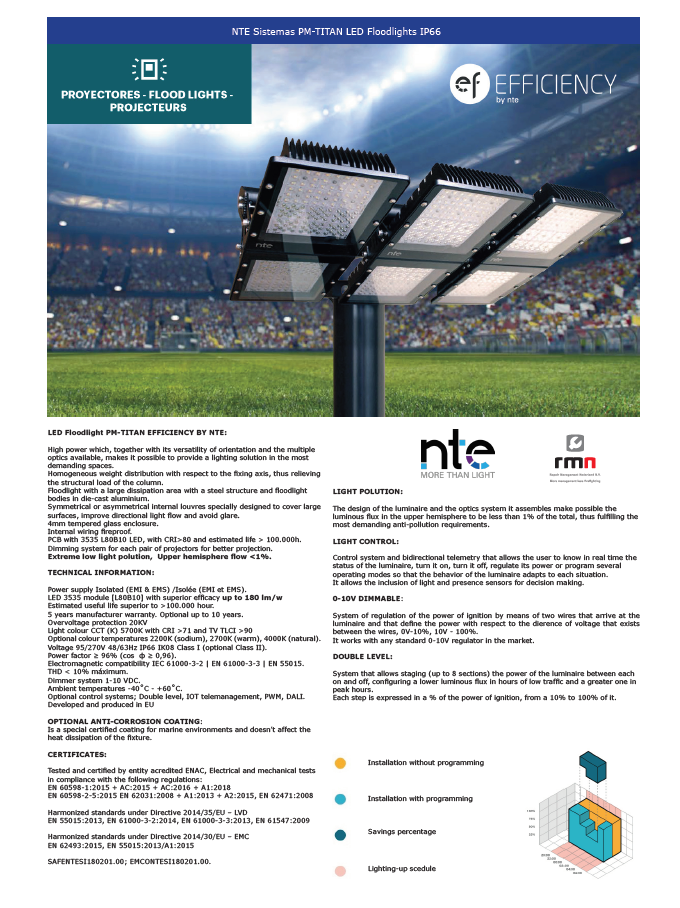

PM-TITAN LED Floodlights datasheet
Unique extreme low light polution of less than 1%
A very unique future for this floodlight is that the design of the optics system makes it possible that the luminous flux in the upper hemisphere is to be less than 1% of the total, thus fulfilling the most demanding anti-pollution requirements.
