Sealite Solar Marine Lanterns

Sealite Solar Marine Navigation Lanterns

Sealite’s range of solar LED marine lanterns offer superior visibility, require minimal maintenance and have a service life of  up to 12 years. The marine lanterns range from 1NM up to 13NM can be used for a range of applications.

Sealite’s range of lanterns can be installed on buoys and offer a number of monitoring and control options for remote maintenance. These products provide the perfect solution for coast guards, ports and harbours, inland waterway authorities and other government bodies.

Sealite SL-15 the 1-2NM+ Solar Marine Lantern

The compact SL-15,  1-2NM+ solar LED short range marine lantern is exceptional value and incorporates some of the most advanced technology available. The SL-15 is designed to be maintenance-free, installed in minutes and has a service life of over 5 years. The SL-15 is also available with an optional ON/OFF switch for temporary installations such as worksites. Ideal Marine light on dredge pipe lines.

Light Characteristics
Light Source: LED
Available Colours: Red, Green, White, Yellow, Blue
Typical Maximum Intensity (cd)*: Red 6.2, Green 7.6, White 6.8, Yellow 5.9
Visible range @ 0.74: 1-2+ nm
Visible range @ 0.85: 1.1-2.3+ nm
Horizontal Output: 360 degrees.
Vertical divergence: 7 degrees.
Flash Characteristics: up to 16 user-adjustable IALA.
Intensity Adjustments: 32 automatic step-down settings based on power demand of the flash code selection.
LED Life Expectancy >100.000 hours.

Number Description
904130     SL-15 Yellow
904131      SL-15 Red
904132     SL-15 Green
904133     SL-15 White
904134     SL-15 Blue Blue

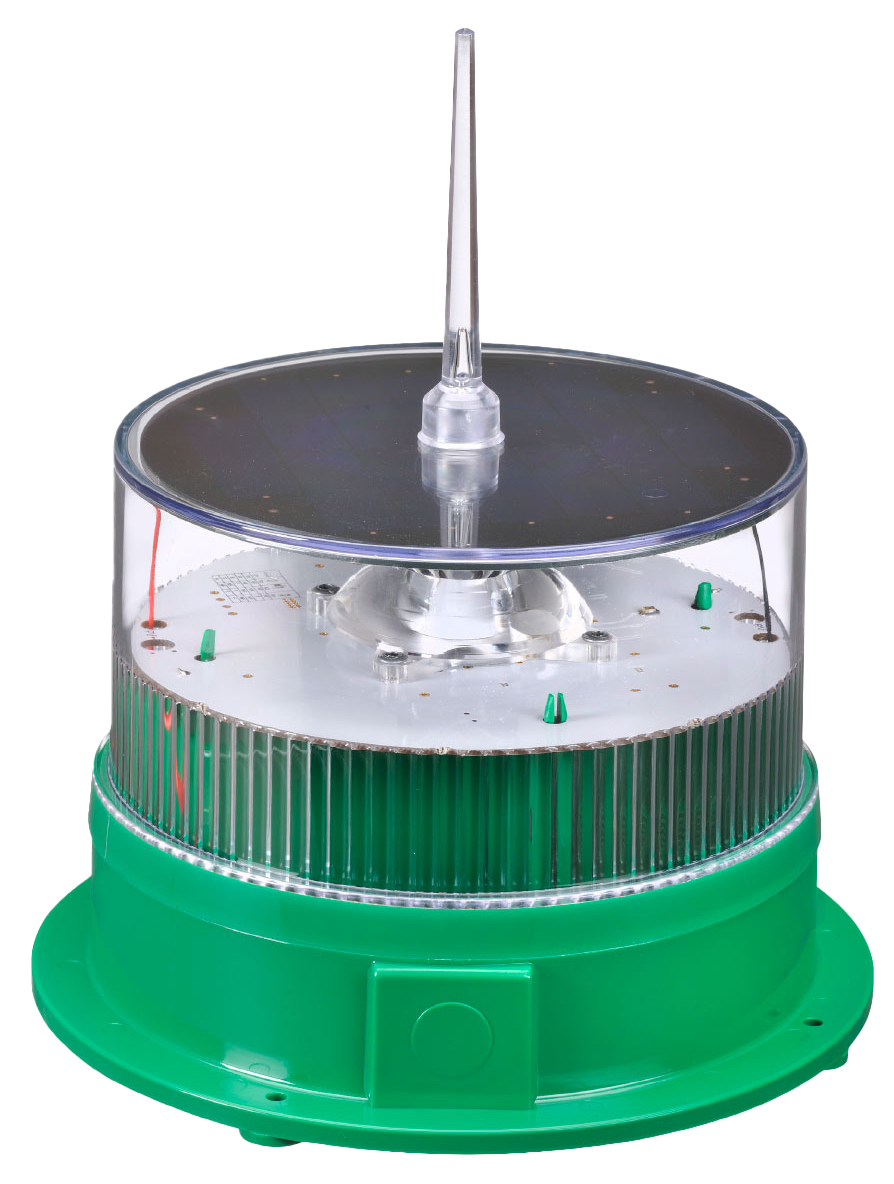

Sealite SL-60 the 2-3NM+ Solar Marine Lantern

The SL-60 model is a popular solar marine lantern with a visible range of 2-3NM. The SL-60 is designed to be maintenance-free, installed in minutes, and has a service life of over 12 years. The lantern is suitable for short-range applications in a number of industries including: aquaculture, marinas, waterside construction, ports and harbours. Optional GPS synchronisation allows two or more units to flash in unison provided that they are set to the same flash character. This feature enhances visual recognition of boundaries or water channels, making it easier and safer for mariners to navigate.

Light Characteristics
Light Source: LED
Available Colours: Red, Green, White, Yellow, Blue
Typical Maximum Intensity (cd)*: Red 24.7, Green 26.6, White 29.2, Yellow 18.8
Visible range @ 0.74: 2-3+ nm
Visible range @ 0.85: 2.3-3.5+ nm
Horizontal Output: 360 degrees.
Vertical divergence: 7 degrees.
Flash Characteristics: up to 256 IALA recommended.
Intensity Adjustments: Adjustable in 25% increments.
LED Life Expectancy >100.000 hours.

Number    Description    Intensity (cd)*
904208        SL-60 Yellow     18.8
904209        SL-60 Red          24.7
904210        SL-60 Green       26.6
904211         SL-60 White       29.2
904212         SL-60 Blue
* depend on hours sunlight per day

Sealite SL-70 the 2-3NM+ Solar Marine Lantern

The SL-70 model is a high-performance solar marine lantern with a visible range of 2-3NM. The SL-70 is unique in its proven ability to operate in low sunlight conditions. This is due to dual solar modules that are angled for maximum sunlight capture and integrated within the lens. The SL-70 is designed to be maintenance-free, installed in minutes, and has a service life of up to 12 years.  The lantern is suitable for applications in a number of industries including: aquaculture, marinas, waterside construction, ports and harbours. Optional GPS synchronisation allows two or more units to be set to the same flash character, allowing the lanterns to flash in unison. This improves visual recognition of boundaries or water channels, helping to ensure safe passage for ships and vessels.

Light Characteristics
Light Source: LED
Available Colours: Red, Green, White, Yellow, Blue
Typical Maximum Intensity (cd)*: Red 24.7, Green 26.6, White 29.2, Yellow 18.8
Visible range @ 0.74: 2-3+ nm
Visible range @ 0.85: 2.3-3.5+ nm
Horizontal Output: 360 degrees.
Vertical divergence: 7 degrees.
Flash Characteristics: up to 256 IALA recommended.
Intensity Adjustments: Multiple intensity settings.
LED Life Expectancy >100.000 hours.

Number   Description     Intensity (cd)*
904222       SL-70 White        29.2
904223       SL-70 Yellow       18.8
904224       SL-70 Red            24.7
904225       SL-70 Green         26.6
904226       SL-70 Blue

* depend on hours sunlight per day



Sealite SL-75 the 3-5NM+ Solar Marine Lantern

The SL-75 is a next generation solar marine lantern with up to 5NM visible range. The lantern incorporates dual high-performance solar panels for maximum sunlight capture and utilises the latest Bluetooth® Technology for convenient configuration and maintenance. This model is supported by SealitePro® mobile application, designed to allow for complete programming (via Bluetooth®) of the SL-75 lantern. An easy to use interface and with intelligence built-in, the App enables access to read and program the lantern functions from a mobile device up to 50 meters away. This innovation reduces maintenance times, improves productivity and reduces safety risks by minimising the need to climb onto a buoy or structure. Optional GPS synchronisation allows two or more units set to the same flash character to flash in unison, improving visual recognition of boundaries or marine channels. Optional GSM gives users the added ability to control and monitor asset remotely.

Light Characteristics
Light Source: LED
Available Colours: Red, Green, White, Yellow, Blue
Visible range NM/km: 3-5 / 5.5-9
Horizontal Output: 360 degrees.
Vertical divergence: 7.5 degrees (standard) / 5 degrees (optional).
Flash Characteristics: 310 plus custom character.
Intensity Adjustments: Multiple intensity settings.
LED Life Expectancy >100.000 hours.

Number   Description   Typical Maximum Intensity (cd)
                                               SL-75-7D         SL-75-5D
904230       SL-75 White     131                         183
904231        SL-75 Yellow      65                          87
904232       SL-75 Red           98                        143
904233       SL-75 Green      104                       109

* depend on hours sunlight per day



Sealite SL-C310 the 3-5NM+ Solar Marine Lantern

The SL-C310 series are robust, completely self-contained 3-5NM+ Solar LED marine lanterns. They are designed to be maintenance-free, installed in minutes, and have a service life of over 12 years. These lanterns are available in three chassis size configurations; compact, standard and extended. They accomodate larger battery capacity and additional solar charging capacity. Satellite connectivity is available as an option. The four (4) premium-grade solar modules are integrated into the assembly, and are mounted to collect sunlight at all angles. The lanterns are IP68 water ingress rated and with a handle incorporated into the chassis for safe lifting. The SL-C310 series is available with GPS Synchronisation as standard. Two (2) or more lanterns can be synchronised to flash in unison via internal GPS module. The SL-C310 series may also be fitted with Satellite Communications Module or GSM Module – enabling users to access real-time diagnostic data and two-way monitoring and control through the STAR2M® portal.

Light Characteristics
Light Source: LED
Available Colours: Red, Green, White, Yellow, Blue
Typical maximum flash intensity: Red-121, Green-88, White-156 and Yellow-95.
Visible range @ 0.74: 3-5+ nm
Visible range @ 0.85: 3.5-6.3+ nm
Horizontal Output: 360 degrees.
Vertical divergence: >7 degrees.
Flash Characteristics: up to 256 IALA recommended (adjustable).
Intensity Adjustments: Multiple intensity settings.
LED Life Expectancy >100.000 hours.

Number    Description    Intensity (cd)*
904242       SL-C310 White    156
904243       SL-C310 Yellow     95
904244       SL-C310 Red         121
904245       SL-C310 Green      88
904246       SL-C310 Blue

* depend on hours sunlight per day



Sealite SL-C510 the 5-9NM+ Solar Marine Lantern

The SL-C510 is the first small form factor 5-9NM lantern in the mid-range space incorporating two-way global satellite technology, OLED display, Bluetooth® connectivity and exclusive monitoring and control options via the Iridium® satellite network. The SL-C510 is high intensity, completely self-contained and offers class leading features to improve the way customers manage their valuable aids to navigation assets. Designed with next generation solar technology including individual active maximum power point tracking (MPPT) and enhanced LED optics, the range offers high operating efficiency and run time. The SL-C510 is designed and manufactured to withstand the tough marine environment and is a game changer for maintenance staff with easy and fast maintenance now a viable option. Available wit a Compact Chassis, a Extended Chassis and with an AIS Chassis (to recognize by an antenna mounted to the chassis)

Light Characteristics
Light Source: LED
Available Colours: Red, Green, White, Yellow, Blue
SL-C510-5D Typical maximum intensity (cd)*:
Red-620, Green-690, White-1150 and Yellow-570, Blue-310.
SL-C510-10D Typical maximum intensity (cd)*:
Red-460, Green-440, White-650 and Yellow-320, Blue-200
Visible range @ 0.74: 5-9+ nm
Horizontal Output: 360 degrees.
Vertical divergence: 5 or >10 degrees.
Flash Characteristics: up to 310 IALA recommended (user adjustable).
Intensity Adjustments: Multiple intensity settings.
LED Life Expectancy >100.000 hours.



Sealite SL-C500 / SL-C600 the 5-12NM+ Solar Marine Lantern

The SL-C500 and SL-C600 models are large solar powered marine lanterns with a visible range of 5-12NM and a service life of over 12 years. The power supply unit is made from UV stabilised polyethylene and holds four (4) premium-grade solar modules and a large internal battery. The solar and battery power supply provides an increased working autonomy and is suitable for more demanding user requirements or low sunlight regions. The solar powered lantern uses the SL-155 as a light-source, offers a range of features including multiple lens divergences and PC programming.

Light Characteristics SL-C500
Light Source: SL-155-2.5D/5D/10D lantern
Available Colours: Red, Green, White, Yellow
Typical Maximum Intensity (cd)*: Refer to Typical Maximum Intensity Table for SL-155 Series Lanterns.
Visible range @ 0.74: 5-12 nm
Visible range @ 0.85: 6.3-17.4 nm
Horizontal Output: 360 degrees.
Flash Characteristics: Up to 310 including 256 IALA recommended, & 1 custom.
Intensity Adjustments: User adjustable.
LED Life Expectancy >100.000 hours.

Light Characteristics SL-C600
Light Source: SL-155-2.5D/5D/10D lantern
Available Colours: Red, Green, White, Yellow
Typical Maximum Intensity (cd)*: Refer to Typical Maximum Intensity Table for SL-155 Series Lanterns.
Visible range @ 0.74: 6-12 nm
Visible range @ 0.85: 7.8-17.4 nm
Horizontal Output: 0-360 degrees.
Vertical divergence: 2.5, 5 or 10 degrees.
Flash Characteristics: Up to 310 including 256 IALA recommended, & 1 custom.
Intesity Adjustments: Multiple intensity settings.
LED Life Expectancy >100.000 hours.

Sealite Optional IR Remote Control

The IR Remote Control is used to communicate with the Sealite lighting products that have an IR Sensor fitted. The remote control is used for the following functions:

  • Flash Code: read the current flash code, configure a new flash code.
  • Lamp Intensity; read the current lamp intensity, configure a new intensity level.
  • Ambient Light Thresholds: read the current light thresholds, configure a new ambient light threshold.
  • Perform a battery health check

Number   Description

904100       Sealite SL-IRC IR Programmer
