SEALITE BARGE LIGHTS

Sealite offers 2NM and 3NM battery and solar powered barge lights that are certified to UL 1104 and COLREG-72 photometrics. Under international standards, barge lights with 2NM visible range are generally suited to vessels 12 meter or more in length, but less than 50 meters in length. Barge lights with 3NM visible range are generally suited to vessels 50 meter or more in length.

2NM BargeSafe Solar Barge Light

The Sealite BargeSafe Solar 2NM is a solar powered barge light designed to meet applicable sections UL1104 and COLREG-72 standards. The lights are suitable on vessels of 12 metres or more in length, but less than 50 metres in length. ON/OFF Storage switch. Ultra low power consumption. NiMH battery for long service life & wide temperature range. Installed in minutes – completely self-contained. Is IP68 waterproof.

Light Characteristics
Light Source: 1 ultra-high density LED
Light Colours: Red, Green, White
Visible range @ 0.74: 2+ nm
Visible range @ 0.85: 2.3+ nm
LED Life Expectancy >100.000 hours

Number Description           Degrees sector
904250     BargeSafe Green      112.5˚
904251      BargeSafe Red          112.5˚
904252      BargeSafe White      135˚
904253      Peep-Light



Sealite BargeSafe Solar 2NM installation manual – instructions for use

3NM BargeSafe Solar Barge Light

The Sealite BargeSafe Solar 3NM is a solar powered barge light designed to meet applicable sections UL1104 and COLREG-72 standards. The lamps are suitabel for vessels of 50 metres or more in length.
Completely with self-contained solar modules and battery. ON/OFF storage switch. Precise light sectoring achieved via Sealite’s world-class lens. Ultra low power consuption. Robust design.

Light Characteristics
Light Source: 1x 1watt ultra-high density LED (sectored configuration)
Light Colours: Red, Green, White, Yellow as per UL1104 & COLREG-72
Visible Range @ 0.74: >3 nm as per UL1104 & COLREG-72
Visible Range @ 0.85: >3.5nm as per UL1104 & COLREG-72
Flash Characteristics as per UL1104 & COLREG-72 (steady-on & flashing)
LED Life Expectancy >100.000 hours

Number Description             Degrees sector
904260     BargeSafe Green        112.5˚
904261      BargeSafe Red            112.5˚
904262     BargeSafe White         135˚
904263     BargeSafe Yellow        225˚
904264     BargeSafe Yellow PL  135˚
904265     BargeSafe All Round  360˚



Number   Description
904258       Peep-Light for Masthead light

This Blue steady-on light is used to guide mariners when manoeuvering the barge into dock and to help determine the swing of the bow when viewed from the stern. The Peep-Light comes standard with 12V rechargeable battery connection.

Sealite BargeSafe Solar 3NM installation manual – instructions for use

3NM LED Barge Light (Battery Powered)

The Sealite BargeSafe™ 3NM battery powered LED barge light is certified to UL 1104 and COLREG-72 compliant with >3NM visible range.
The LED barge light is one of the most advanced in its class, and incorporates a host of innovative features designed to make the unit extremely user-friendly. The world-class LED lens is designed and manufactured by Sealite and achieves precise intensity and sectoring requirements from a single LED light source. This design helps achieve a lower operational current compared with alternative LED barge lights – making the unit ultra-efficient and offering a battery run time of up to 45 nights. A magnetic base provides strong fixing in position to the barge deck.
Available as a 360 degree all round light with flashing or steady-on flash characteristics.

Light Characteristics
Light Source: 1x 1watt ultra-high density LED (sectored configuration)
Light Colours: Red, Green, White, Yellow as per UL1104 & COLREG-72
Maximum intensity (cd): as per UL1104 & COLREG-72
Visible Range @ 0.74: >3 nm as per UL1104 & COLREG-72
Visible Range @ 0.85: >3.5nm as per UL1104 & COLREG-72
Flash Characteristics as per UL1104 & COLREG-72 (steady-on & flashing)
All-round flashing Red.
LED Life Expectancy >100.000 hours

Number   Description                 Degrees sector
904270       BargeSafe Green            112.5˚
904271        BargeSafe Red                112.5˚
904272        BargeSafe White            135˚
904273        BargeSafe Yellow          225˚
904274        BargeSafe Yellow PL     135˚
904275        BargeSafe All Round    360˚



PL= with Bulgin connector for Peep-Light attachment.
Peep-Light NOT included (order separate)

Number Description
904258     Peep-Light for Masthead light

This Blue steady-on light is used to guide mariners when manoeuvering the barge into dock and to help determine the swing of the bow when viewed from the stern. The Peep-Light comes standard with 12V rechargeable battery connection.

Sealite BargeSafe (Battery Powered) 3NM installation manual – instructions for use

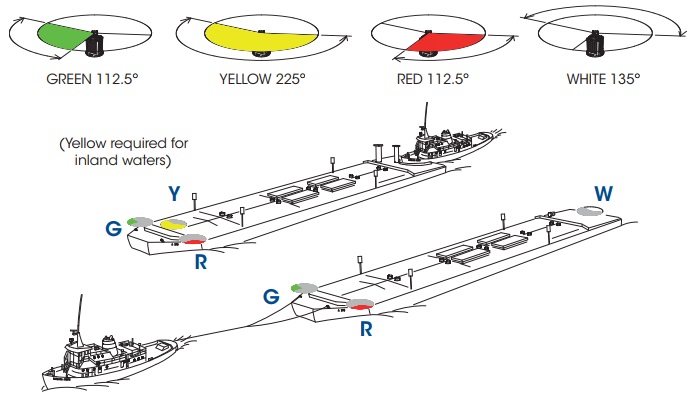

Here below an example of of the location of the 3NM Barge Lights. always check with your local authority before installing the Sealite BargeSafe™ lantern to ensure the position and range is appropriate for your requirements.

Here below an example of of the location of the 2NM Barge Lights, suitable on vessels of 12 meter or more in length, but less than 50 meters in length. Always check with your local authority before installing the Sealite BargeSafe™ lantern to ensure the position and range is appropriate for your requirements.
