TEP Ex offers a wide range of Ex Light Fittings.
The Ex Light fittings are suitable for Zone 1, 2, 21, 22 and are also available with power back-up systems for escape routes. All produced according to the highest standard and with the latest LED technology.
LED Light fitting PLSF-N 100 LED, as high bay or floodlight for Zone 1, 2, 21, 22. Suitable for wall mount, ceiling mount and to mount on a pipe with a special assembly kit. The fixtures have the highest efficiency, high colour rendering index CRI 80, an estimate service life of 70.000 hours, with OVP, OCP, OTP protection, autonomous reactivation after recovery. The housing is made from high quality aluminium profile powder painted casting, a diffuser of strong borosilicate glass, gasket of silicone. Several accessories are available. Aparatus category is II 2GD, Explosion protection; Ex db eb op is IIC T6 Gb, Ex tb op is IIIC T80°C Db, environment temperatures; -40°C ÷ +50°C, degree of protection IP66 category 1 and IK08 resistant to shock. Rated voltage 90-305 Vac, 127-431 Vdc 50/60Hz. The light fittings are available as MULTI FLOODLIGHT SOLUTIONS
LED Floodlight RLF 320 series, For ATEX Zone 1, 21, 2, 22. High High colour rendering index CRI 80, estimate service life 70.000 hours at Ta +40°C , with OVP, OCP, OTP protection, autonomous reactivation after recovery. Housing; aluminium powder painted casting, diffuser of strong borosilicate glass, gasket of silicone, several accessories available. Aparatus category is II 2GD marking CE0722, Explosion protection; Ex db eb op is IIC T4 Gb, Ex tb op is IIIC T100°C Db, environment temperatures; -30ºC ≤ Ta ≤ +40ºC /+50ºC ATEX, degree of protection IP66 category 1 and IK08 resistant to shock. Rated voltage 90-305 Vac, 127-420 Vdc 50/60Hz, power factor >0.99. Lumen efficacy of 130 lm/W, system efficacy >93%. Available as RLF 320 LED-1 250W 24.500 lumen (RMN article no. 83TEP7030) and RLF 320 LED-2 320W 31.000 lumen (RMN article no. 83TEP7031).
Pendant light fitting / Floodlight PLFS 50 LED, Highest efficiency for use in Zone 1, 2, 21, 22. High colour rendering index CRI 80, estimate service life 70.000 hours, with OVP, OCP, OTP protection, autonomous reactivation after recovery. Housing; aluminium powder painted casting, diffuser of strong borosilicate glass, gasket of silicone, several accessories available. Aparatus category is II 2GD, Explosion protection; Ex db eb op is IIC T6/T5 Gb, Ex tb op is IIIC T80°C/T85°C Db, environment temperatures; -40ºC ≤ Ta ≤ +40ºC /+50ºC ATEX, -50ºC ≤ Ta ≤ +50ºC EAC, degree of protection IP66 category 1 and IK08 resistant to shock. Rated voltage 90-305 Vac, 127-431 Vdc 50/60Hz.
Bulkhead light fitting 0403.24 LED 20, for confined or restricted places in Zone 1, 2, 21, 22. Robust and light alloy enclosure with a weight of only 4 kg. Allowing the user to mount in areas where the available space is restricted. Fast and easy installation. Housing of aluminium powder painted casting, diffuser of strong borosilicate glass with a silicone gasket. Protection grid from Stainless Steel AISI 316 (the standard version comes without a protection grid). Aparatus category is II 2GD, Explosion protection; Ex eb mb IIC T6 Gb, Ex tb IIIC T80°C Db, environment temperatures; -30°C ÷ +50°C, degree of protection IP66 category 1 and IK08 resistant to shock. Rated voltage; 230 VAC (48-230 VAC/DC ±15% Autonomous power supply / on request), 230V ±10% AC. Estimated service life 70.000 hours, CCT 2700K.
Linear LED light fitting FLX 310 LED, a high performance light fitting with 3240 lumen light output for Zone 1, 2, 21, 22. High colour rendering index CRI>80. Estimated service life ≥50.000 working hours at an ambient temperature of 40°C. Equipped with LED 3x12W chip-on-board technology with OVP, OCP, OTP protection, autonomous activation after recovery. Suitable for linear lighting up to 20 modules. Housing from aluminium powder painted casting, diffuser strong borosilicate glass tube with a silicone gasket. The fitting is normally supplied with three LED linear sources, two entries (one with blind plug) and wall/ceiling mounting set. Several options available. For Marine applications RMN can supply with an optional mounting set to prevent galvanic corrosion article number 83TEP055042CL. Aparatus category is II 2GD, Explosion protection; Ex db eb op is IIC T6 Gb, Ex tb op is IIIC T80°C Db, environment temperatures; -20°C ÷ +50°C, degree of protection IP66 category 1 and IK08 resistant to shock. Rated voltage; 220-240V 50/60Hz (110V on request). Connection is fast and easy due to the internal cable terminals. RMN Article number is 83TEP055042 and available with 2 cable glands for through wiring under article number 83TEP055042W2
Linear LED light fitting FLXL LED, a high performance light fitting with 2900 up to 9100 lumen light output for Zone 1, 2, 21, 22. High colour rendering index CRI>80. Estimated service life ≥50.000 working hours at an ambient temperature of 40°C. Equipped with LED strip with OVP, OCP, OTP protection, autonomous activation after recovery. Suitable for linear lighting up to 20 modules. Housing from aluminium powder painted casting, diffuser strong borosilicate glass tube with a silicone gasket. The fitting is normally supplied with three LED linear sources, two entries (one with blind plug) and wall/ceiling mounting set. Several options available. For Marine applications RMN can supply with an optional mountingset to prevent galvanic corrosion. Aparatus category is II 2GD, Explosion protection; Ex db eb op is IIC T6 Gb, Ex tb op is IIIC T80°C Db, environment temperatures; -20°C ÷ +50°C, degree of protection IP66 category 1 and IK08 resistant to shock. Rated voltage; 220-240V 50/60Hz (110V on request). Connection is fast and easy due to the internal cable terminals.
Marine Environments mounting
Especially for installation in Marine Environments it is required to install the luminaire using 2 pcs of the stainless steel mounting bracket (article 83TEP055042CL) to avoid bi-metallic corrosion on the housing. These are for both FLX 310 and FLXL series light fittings.

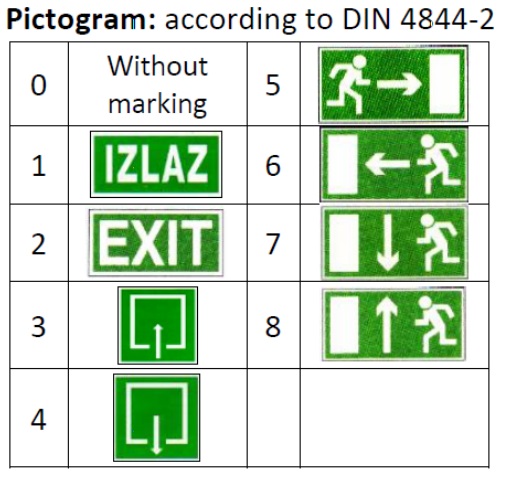

Emergency light fitting FLXE LED, used for marking escape routes and exits in potentially explosive atmospheres, suitable for Zone 1, 2, 21, 22. Self-test, monitoring and diagnostics reduce costly maintenance checks. >3 hours autonomy, maintainted / Non maintained operation. DALI compatible ballast. Internal 3 Lithium-ion secondary cells LiFePO4 3.2V / 1.5Ah, microprocessor-controlled charging, discharging, heating and monitoring. Housing from aluminium powder painted casting, diffuser strong borosilicate glass tube with a silicone gasket. The fitting is normally supplied with two entries (one with blind plug) and wall/ceiling mounting set. Several options available. For Marine applications RMN can supply with an optional mountingset to prevent galvanic corrosion. Aparatus category is II 2GD, Explosion protection; Ex db eb op is IIC T6 Gb, Ex tb op is IIIC T80°C Db, environment temperatures; -20°C ÷ +50°C, degree of protection IP66 category 1 and IK08 resistant to shock. Rated voltage; 220-240V 50/60Hz (other voltage on request). Connection is fast and easy due to the internal cable terminals. Rated power; LED Strip SMD 1,4W.
Pendant light fitting PLFM 20 LED, a robust light alloy enclosure with a low weight of only 3,5 kg. Fast and easy installation. The PLFM 100/3 with a E27 lampholder is suitable for use with a LED bulb of maximum 13W (1055 lm) and the PLFM 20 LED is fitted with a 20W LED module with 2.600 lumen, suitable for Zone 1, 2, 21, 22. Housing made from aluminium powder painted casting, diffuser of strong borosilicate glass, several accessories possible. Standard version is without the protective grid. Aparatus category is II 2GD, Explosion protection; Ex db eb op is IIC T6 Gb, Ex tb op is IIIC T80°C Db, environment temperatures; -20°C ÷ +40°C, degree of protection IP66 category 1 and IK08 resistant to shock. Rated voltage; 230V 50/60Hz. Connection is fast and easy due to the internal cable terminals.
Linear LED light fitting PSF LED, a new developed luminaire GREEN IS BETTER Certified as an EU project. Central locking with internal switch, through -wiring possible, LED modules with innovative encapsulation, estimated service life up to 100.000 hours Ta≤20°C>130.000 hour (L70B10C10) , high colour rendering index CRI 80, luminous efficacy 154 lm/W, with OVP, OCP, OTP protection, autoomous reactivation after recovery. Housing made from SMC Polyester plastic reinforced with glass fibre, color RAL 7038. Diffuser PC, gasket silicone, central locking menas can be opened/closed with socket key SW8, hinged lamp cover. The light fitting is normally supplied with socket key, two Ex e cable glands M25, two Ex e plugs M25 and with a mounting set PSF 30-110. The luminaires are suitable for Zone 1, 2, 21, 22. Aparatus category is II 2GD, Explosion protection; Ex db eb mb op is IIC T4 Gb, Ex tb op is IIIC T80°C Db, environment temperatures; -30°C ÷ (+40°C) +55°C, degree of protection IP66 category 1 and IK08 resistant to shock. Rated voltage; 220/250Vac 50/60Hz. Several accessories available. Total 4 options in light output, 5.580 or 11.100 lumen for types PSF LED-2 and 4.900 or 9.100 lumen for types PSF LED-1. For extra low glare factor a LED diffusor can optional be ordered. Also available as escape route emergency version. This emergency version is fitted with an internal back-up battery NiCd 4,8V/4Ah, 3 hour autonomy
Ex Signal Tower type FLXS 118 LED, a new product developed, manufactured and tested according to the prior art in accordance with EN ISO 9001, EN ISO/IEC 80079-34 and EN ISO 14001. The product is in compliance with the LVD Directive 2014/35 EU. The product is in compliance with the RoHS Directive 2011/65 EU and in compliance with the EMC Directive 2014/30 EU. Many properties are similar to the FLX and FLXE luminaires. Expected life time is up to 100.000 hour. It has steady and flashing functions. Resistant against vibrations. Long service life.
Complies with the ATEX Directive 2014/34 EU and standards: EN IEC 60079-0:2018, EN 60079-1:2014, EN 60079-31:2014. Certificate: FIDI 19 ATEX 0028, Category and explosion protection: II 2G Ex db IIC T6 Gb and II 2D Ex tb IIIC T80ºC Db, Ambient temperature: -20ºC ≤ Ta ≤ +50ºC, Degree of protection: IP66, Impact resistance: IK08, Class of protection: I (protective earthing), Nominal voltage Un: 24VAC/DC, 110-120VAC, 230-240VAC. Housing: Aluminium powder painted casting, Diffuser: Borosilicate glass tube.
