Vyrtych Emergency LED Lighting Fixture

Vyrtych Emergency Led Lighting and Emergency and Escape Route LED Lighting

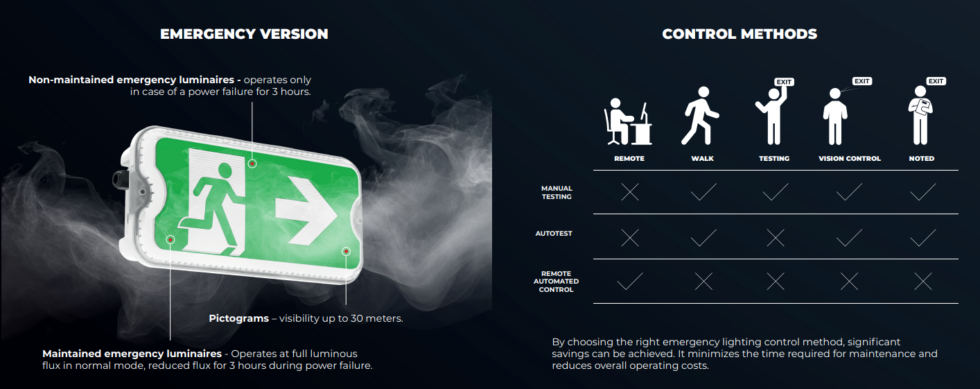

The PALAS-LED is an IP65 Emergency dustproof LED lighting fixture with protection against water jets. The fixture is designed for marking escape routes in indoor areas where resistance to penatration of dust and humidity is required, such as in industrial halls and warehouse areas. Lighting fixtures can be connected in the mode M – maintained emergency lighting as well as CB – Central Battery emergency lighting.

The KERN-E is an IP66/IP67 Emergency Escape Route Lighting fixture with high water and dust resistance and an IK08 impact resistance. The fixtures with battery are suitable for an ambient temperature from 0°C to +50°C. The CB – Central battery fixtures are suitable for use in ambient temperatures from -30°C to +60°C. Available with 3H, 3H AUTOTEST and 3H-DALI battery version. A set of pictograms comes with the fixture to adapt the luminaires to your own escape routes. Multiple accessories make all kind of installation options possible. With the optional Telescoop magnet (83VT63023) it is easy to test without opening the fixture.

The DIOS-LED is an IP65 emergency dustproof LED lighting fixture with protection against water jets and is designed for lighting of escape ways and for providing anti-panic lighting in indoor areas where resistance against the ingress of dust and moisture, such as industrial halls and warehouse areas. Thanks to its simple design, it can be also used for example in corridors of schools and hospitals. . Lighting fixtures can be connected in the mode M – maintained emergency lighting as well as NM – non-maintained emergency lighting. Optional available with AT (autotest) and DATA (Central monitoring system).

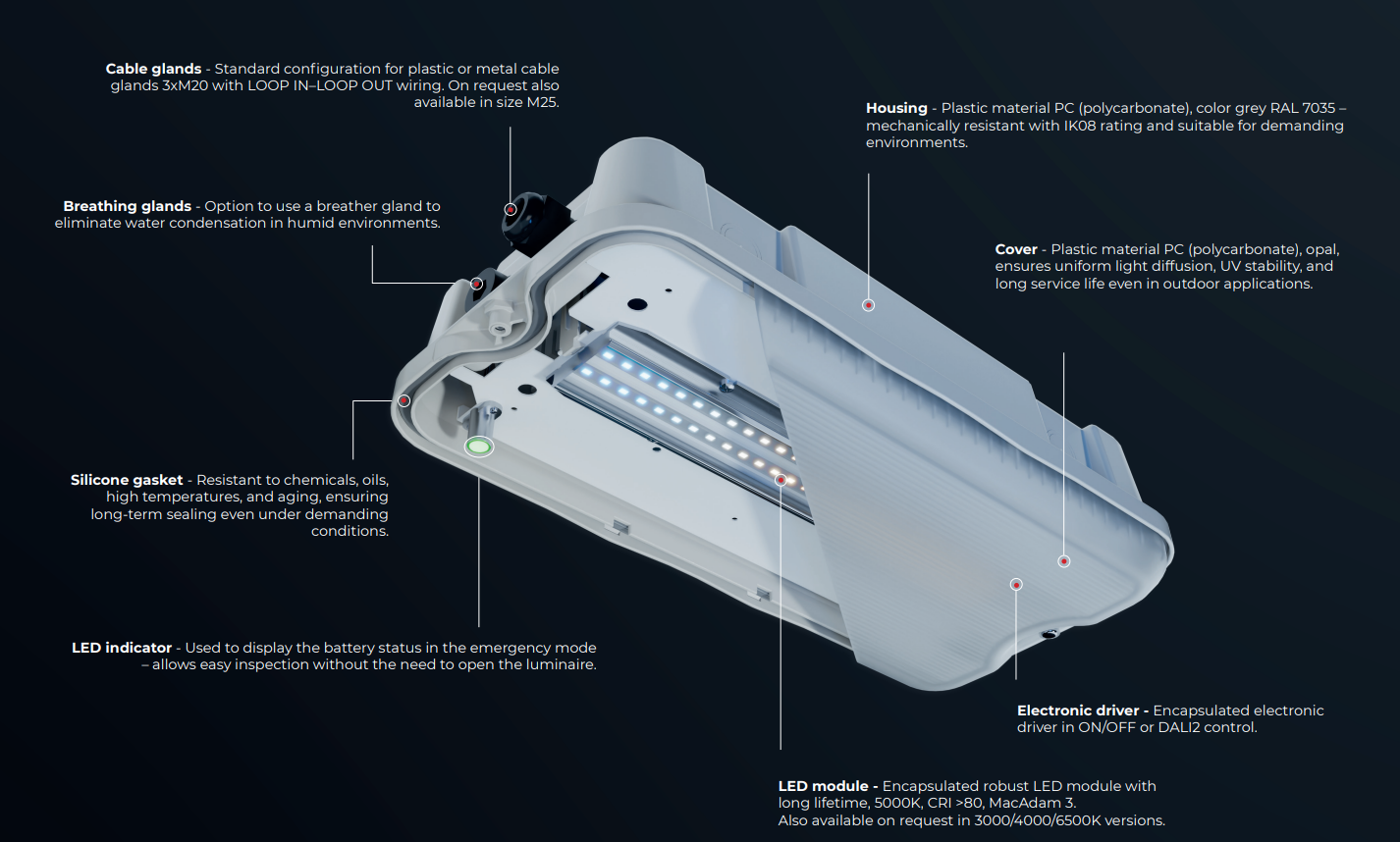

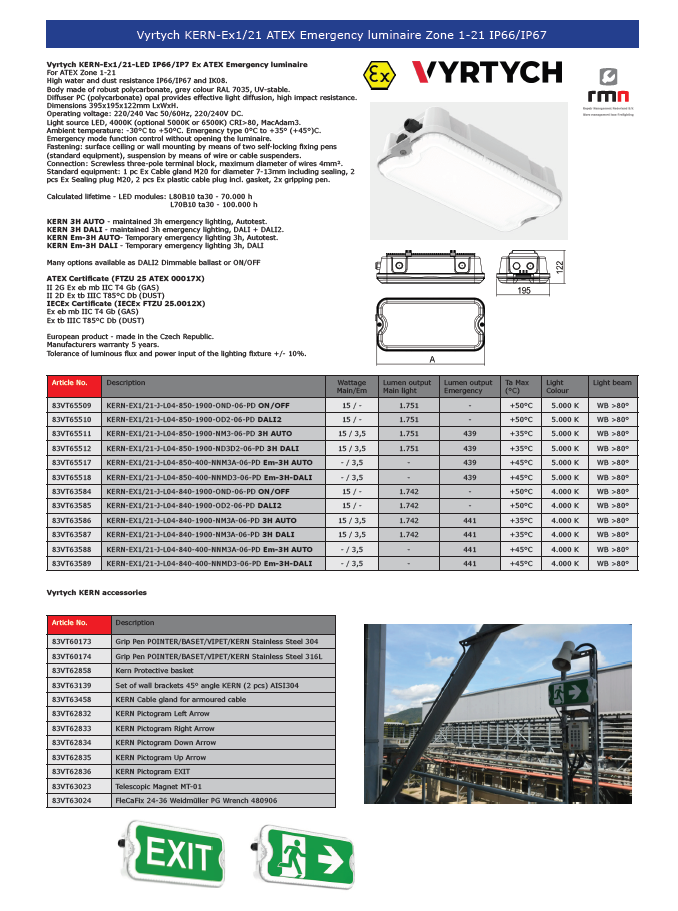

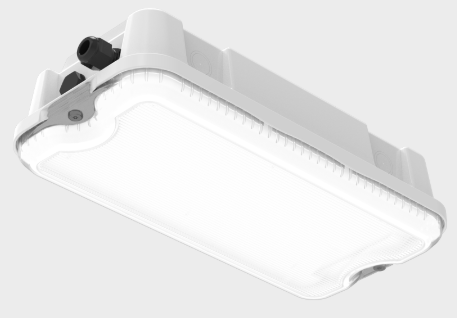

The KERN-Ex 1/21 LED is and emergency – escape route LED luminaire for ATEX Zone 1, 21. The luminaire is high water and dust resistance with it’s protection of IP66/IP67 and impact resistance IK08. Made fro UV-stable polycarbonate and the opal diffusers provides effective light distribution. The luminaires can be ordered in light colours 4.000K, 5.000K and 6.500K. Easy installation is a big benefit. There are multiple options available from only an emergency light up to 3h maintained with Autotest or DALI protocol. The LED luminaires are ATEX certified and IECEx certified. ATEX Certificate (FTZU 25 ATEX 00017X) II 2G Ex eb mb IIC T4 Gb (GAS), II 2D Ex tb IIIC T85°C Db (DUST) and IECEx certificate (IECEx FTZU 25.0012X) Ex eb mb IIC T4 Gb (GAS), Ex tb IIIC T85°C Db (DUST). The Emergency versions comes with a set of Pictograms. For the other versions the pictograms can be ordered separate when required.

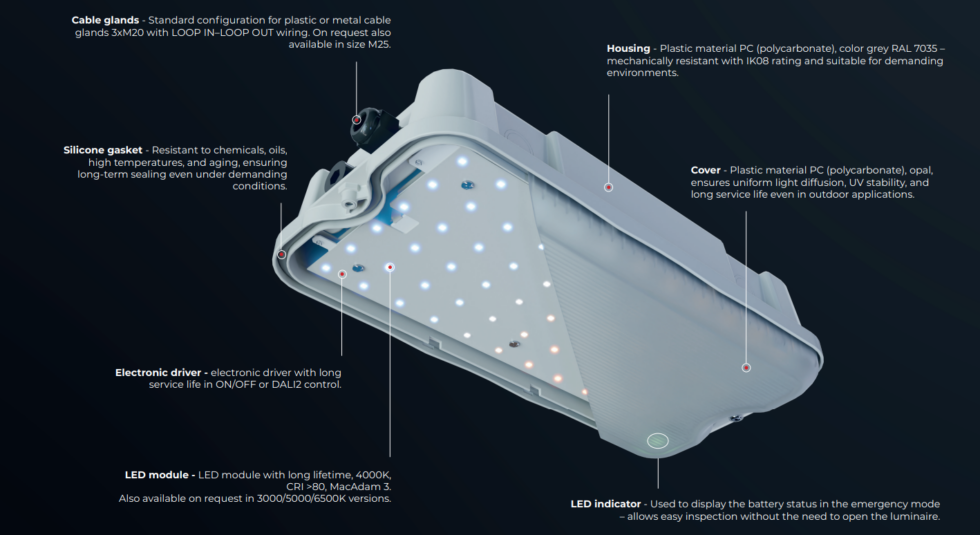

The KERN-Ex-2/21 LED is an emergency and escape route LED luminaire for use in hazardous environments ATEX Zone 2/21. It’s a high water and dust resistant IP66/IP67 light fixture with IK08 impact resistance. ATEX Certificate (FTZU 25 ATEX 00018X) II 3G Ex nR IIC T6 Gc (GAS), II 2D Ex tb IIIC T85°C Db (DUST), IECEx Certificate (IECEx FTZU 25.0013X) Ex nR IIC T6 Gc (GAS), Ex tb IIIC T85°C Db (DUST). The Emergency versions comes with a set of Pictograms. For the other versions the pictograms can be ordered separate when required.

The BASET-N-LED is an emergency and escape route luminaire for use in hazardous environements ATEX Zone 2/22. It’s a high water and dust resistant IP66 light fixture with IK07 impact resistance. ATEX Certificate (Certificate type FTZU 18 ATEX 0048X) EX II 3G nR IIC T6 GC, EX II 3D Ex tc IIIC T40°C (50°C – 35°C) Dc. The Emergency versions comes with a set of Pictograms. For the other versions the pictograms can be ordered separate when required.

The KERN-P is a compact industrial LED luminaire also available with Emergency Light functions. The fixture is high water and dust resistant IP66/IP67 and IK08 impact resistant. The emergency types comes wit a set of pictograms to adapt the fixture to your own escape route. Also available as CB – version for Central Battery system. An optional GESIS connector makes installation fast and easy. With the optional Telescoop magnet (83VT63023) it is easy to test the emergency light without opening the fixture. The standard light fixtures can be used in ambient temperatures from -30°C /+60°C and -30°C /+50°C (Depend on type). The Emergency light fixtures are suitable for temperatures 0°C /+40°C and 0°C /+30°C (depend on type).
