Cabtek Industrial Cable Glands

Cabtek range of Industrial Non-Atex Cable Glands

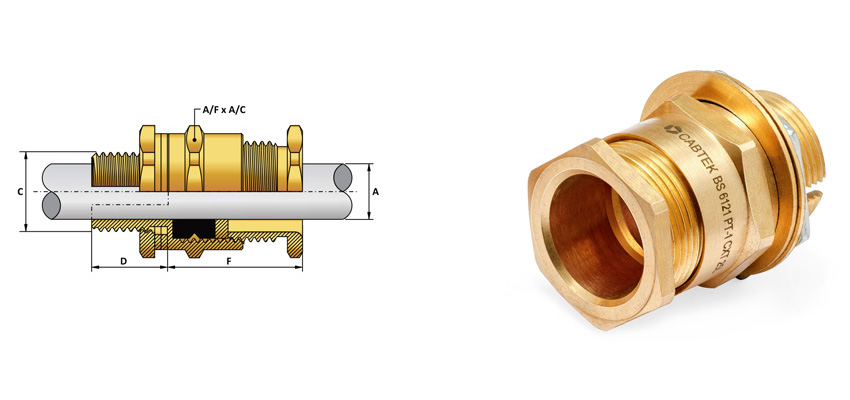

Model A1-CXT

IP66, neoprene washer, for flexible braided unarmoured cable, neoprene compression seal, in Metric, NPT and BSP, temperature range from -20°C up to +80°C.

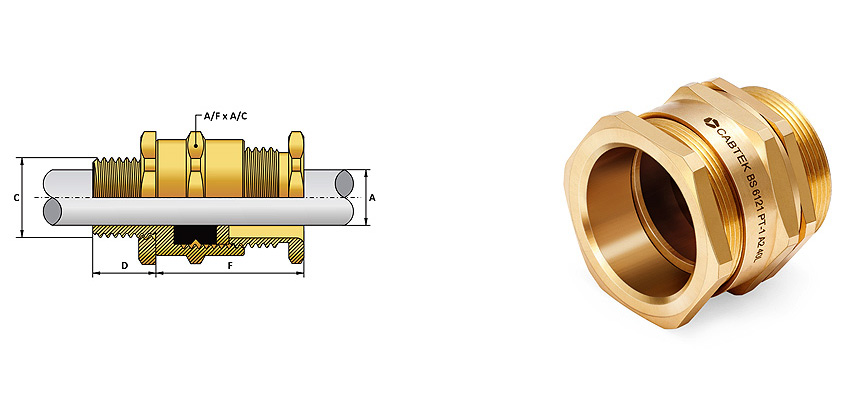

Model A1A2

IP66, brass washer, for unarmoured cable, neoprene compression seal, in Metric, NPT and BSP, temperature range from -20°C up to +80°C.

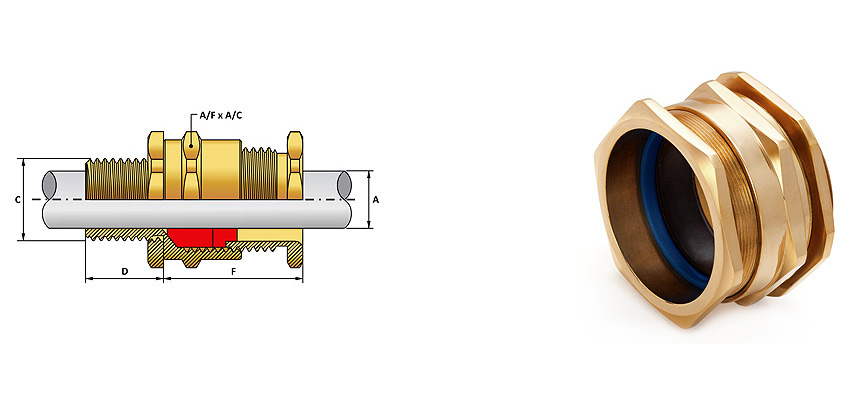

Model A2

IP66, nylon washer, for unarmoured cable, neoprene displacement seal, in Metric, NPT and BSP, temperature range from -60°C up to +125°C.

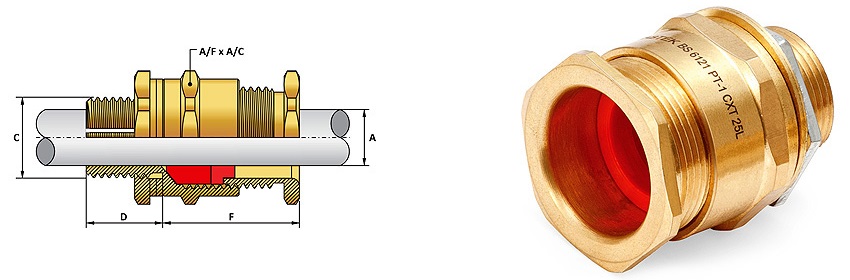

Model A2-CXT

IP66, nylon washer, for unarmoured cable, neoprene displacement seal, in Metric, NPT and BSP, temperature range from -60°C up to +125°C.

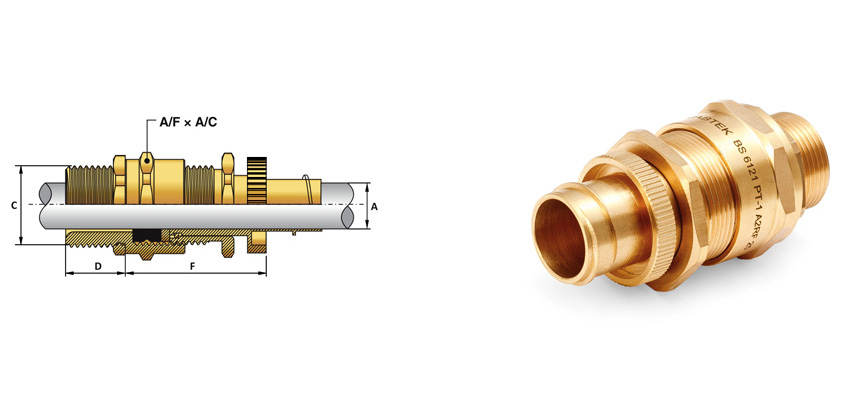

Type A2FC

IP66, nylon washer, for unarmoured cable, neoprene displacement seal, cable way flexible conduit, in Metric, NPT and BSP, temperature range from -60°C up to +125°C.

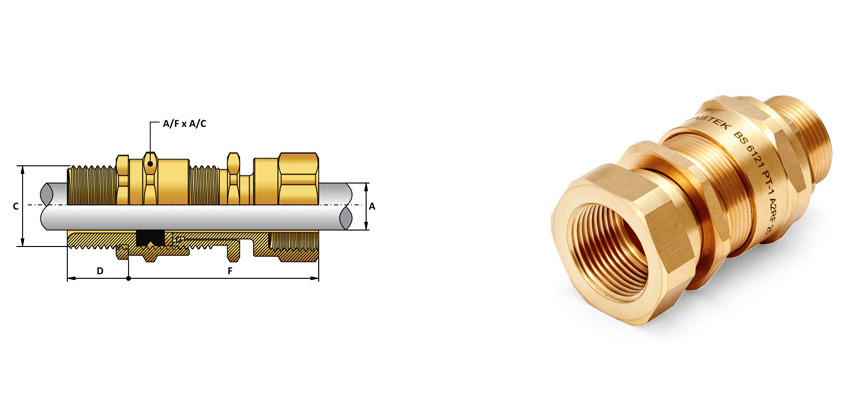

Type A2RF

IP66, nylon washer, for unarmoured cable, neoprene displacement seal, cable way ridgid conduit female thread, in Metric, NPT and BSP, temperature range from -60°C up to +125°C.

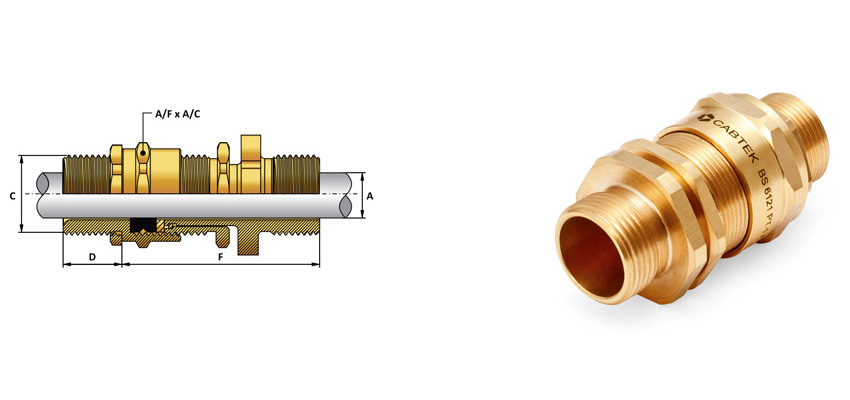

Type A2RM

IP66, nylon washer, for unarmoured cable, neoprene displacement seal, cable way ridgid conduit male thread, in Metric, NPT and BSP, temperature range from -60°C up to +125°C.

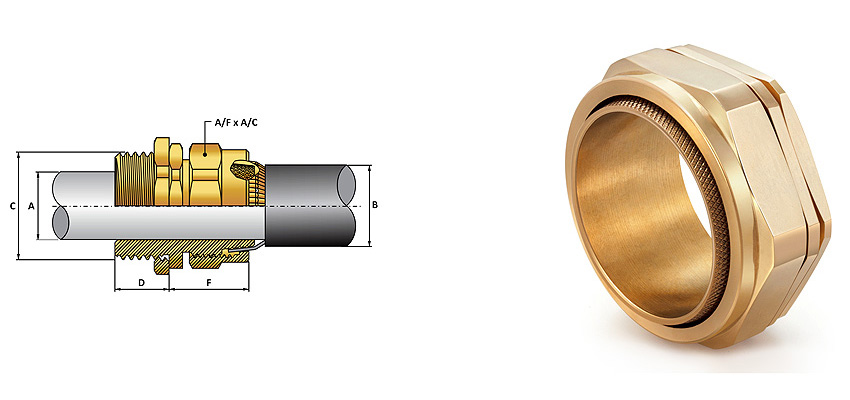

Type BW

IP2X, for single wire armour cable (SWA), no seal (IP2X), cable way two part armour lock, in Metric, temperature range from -60°C up to +200°C.

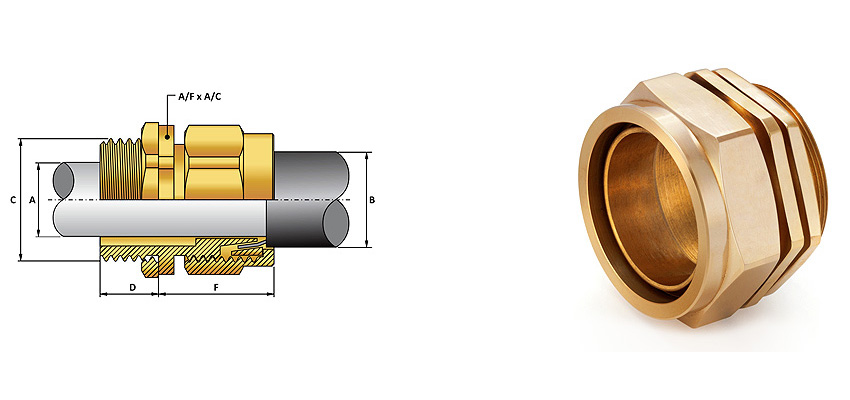

Type BW-4

IP2X, for single wire armoured cable (SWA), no seal (IP2X), cable way armoured ring, in Metric, temperature range from -60°C up to +200°C.

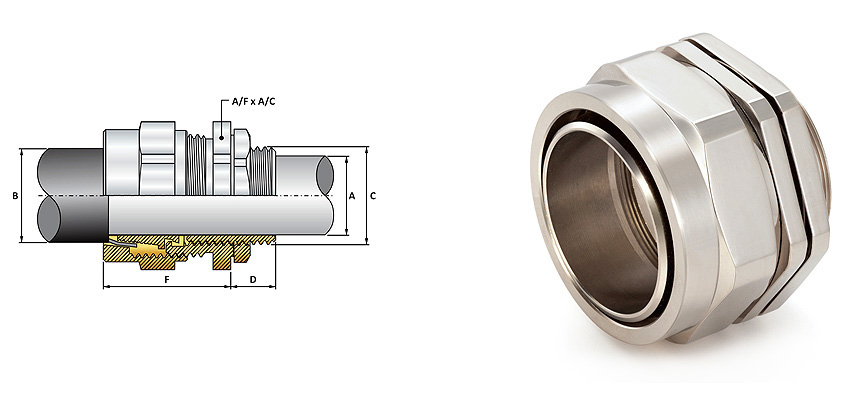

Type BWR

IP2X, for single wire armoured cable (SWA), no seal (IP2X), cable way rotary, in Metric, temperature range from -60°C up to +200°C.

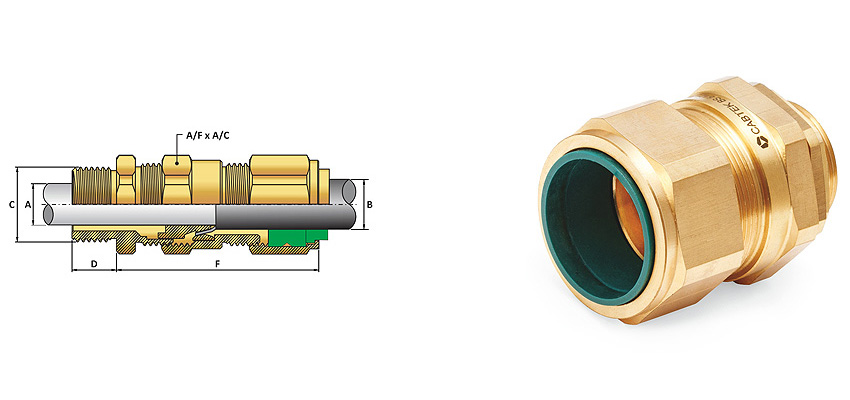

Type CW

IP66, for single wire armoured cable (SWA), compression seal of silicone, cable way universal armoured ring, with universal anyway clamping ring, in Metric, NPT and BSP, temperature range from -60°C up to +125°C.

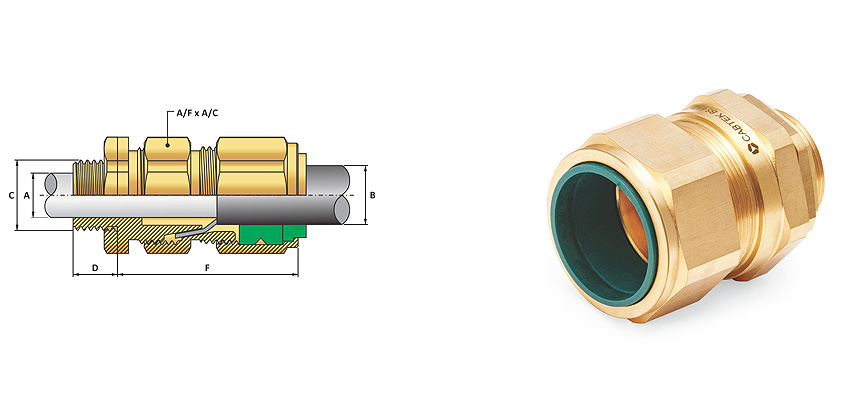

Type CW-3P

IP66, for single wire armoured cable (SWA), compression seal of silicone, cable way two part armoured lock, in Metric, NPT and BSP, temperature range from -60°C up to +125°C.

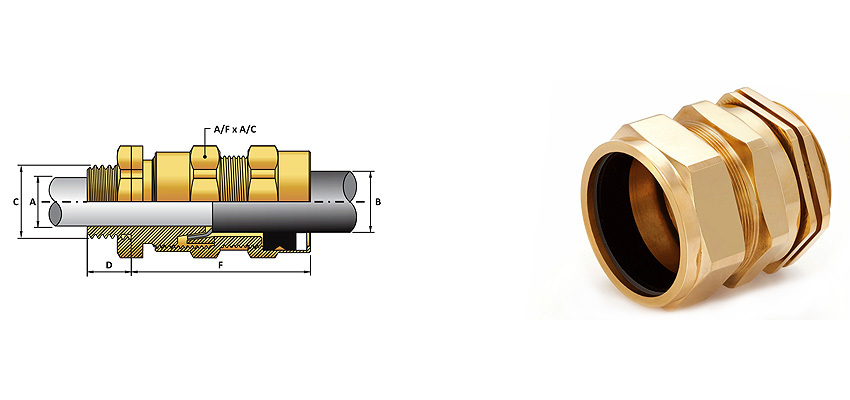

Type CW-4

IP66, for single wire armoured cable (SWA), compression seal of neoprene, cable way armoured ring, in Metric, NPT and BSP, temperature range from -20°C up to +80°C.

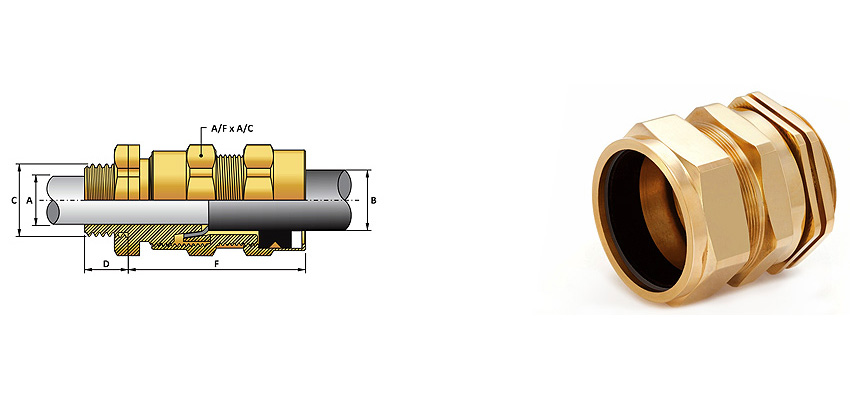

Type CX

IP66, for steel tape armoured cable (STA), compression seal of neoprene, cable way armoured ring, in Metric, NPT and BSP, temperature range from -20°C up to +80°C.

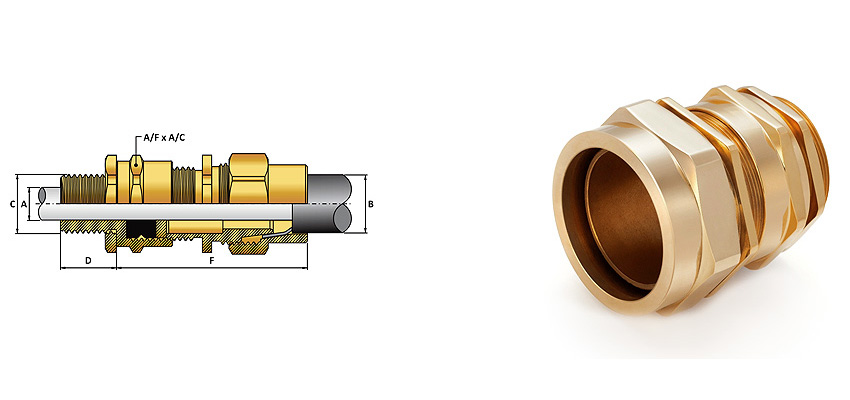

Type D1W

IP66, for single wire armoured cable (SWA), compression seal of neoprene, cable way nylon armoured washer, in Metric, NPT and BSP, temperature range from -60°C up to +125°C.

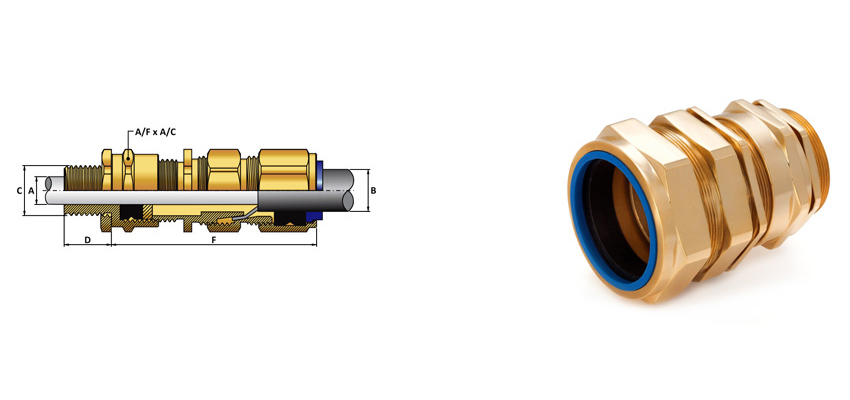

Type E1W

IP66, for single wire armoured cable (SWA), displacement seal of silicone, cable way two part armoured lock, in Metric, NPT and BSP, temperature range from -20°C up to +80°C.

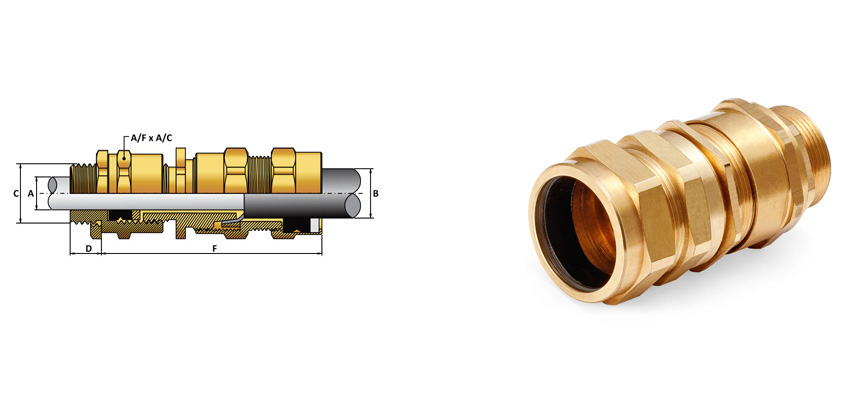

Type E1W-R

IP66, for single wire armoured cable (SWA), displacement seal of neoprene, cable way armoured ring, in Metric, NPT and BSP, temperature range from -20°C up to +80°C.

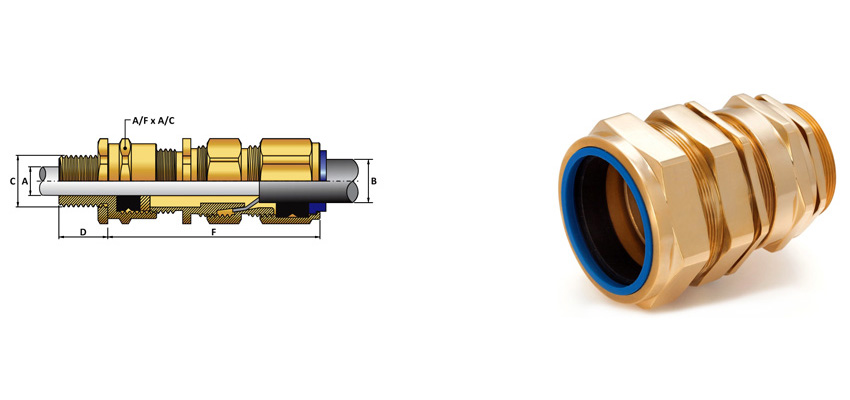

Type E1X

IP66, for steel tape armoured cable (STA), displacement seal of neoprene, cable way two part armoured lock, in Metric, NPT and BSP, temperature range from -60°C up to +125°C.

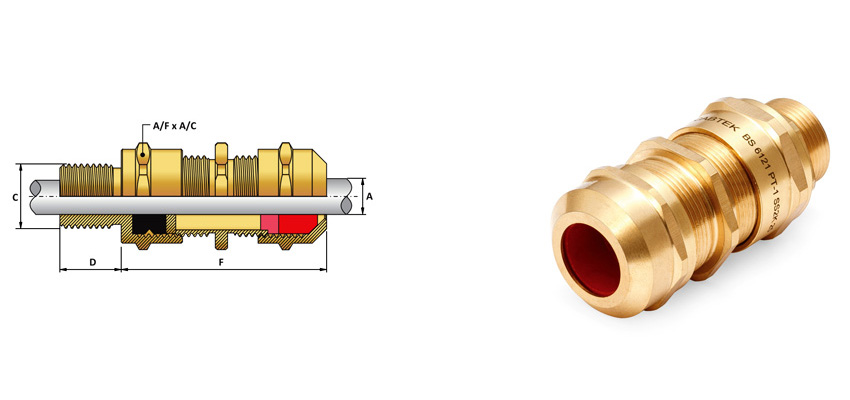

Type SS2K

IP66, for unarmoured cable, double sealing of neoprene, with nylon washer, in Metric, NPT and BSP, temperature range from -60°C up to +125°C.

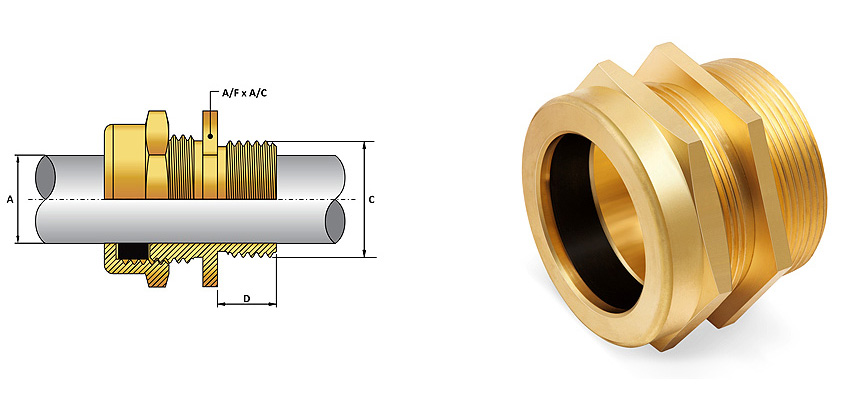

Type TRS

IP66, for unarmoured cable, compression of neoprene, with outer compression seal, in Metric.
